561359 Festo Directional Control Valves
Part#:561359
Alt. Part#:VSVA-B-T32C-AD-D1-1R5L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

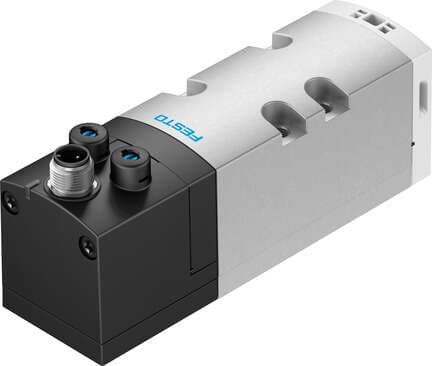

solenoid valve VSVA-B-T32C-AD-D1-1R5L Valve function: 2x3/2 closed, monostable, Type of actuation: electrical, Width: 42 mm, Standard nominal flow rate: 1100 l/min, Operating pressure: 3 - 10 bar
Product Details
- Temperature of medium -5 °C ... 50 °C
- Type of mounting On sub-base
- Pneumatic connection 4 Sub-base, size 1 as per ISO 5599-1
- Seals material FPM NBR
- Lap Overlap
- Width 42 mm
- Design Piston gate valve
- Degree of protection IP65 NEMA 4
- Sealing principle Soft
- Type of control Pilot-controlled
- Flow direction Non-reversible
- Flow rate of pneumatic valve 1600 l/min
- Max. positive test pulse with 0 signal 1600 µs
- On switching time 20 ms
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 5 Sub-base, size 1 as per ISO 5599-1
- Operating pressure 3 bar ... 10 bar
- Pneumatic working port Sub-base, size 1 as per ISO 5599-1 G1/4
- Certification c CSA us (OL) c UL us - Recognized (OL)
- Width dimension 43 mm
- Manual override Detenting Non-detenting
- Signal status display LED
- Flow rate of pneumatic valve on individual sub-base 1200 l/min
- Coil characteristics 24 V DC: 1.3 W
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection 3-pin Round design
- Pneumatic connection 1 Sub-base, size 1 as per ISO 5599-1
- Material of screws Steel Galvanized
- Actuation type Electrical
- Operating voltage 24V DC
- Nominal width 11 mm
- Mounting position Any
- Pilot air supply port Internal
- Switching time off 38 ms
- Duty cycle 100%
- Permissible voltage fluctuations +/- 10 %
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Product weight 442 g
- Pneumatic connection 2 Sub-base, size 1 as per ISO 5599-1
- Note on materials RoHS-compliant
- Valve function 2x3/2, closed, monostable
- Standard nominal flow rate 1100 l/min
- Reset method Pneumatic spring
- Type code VSVA
- Exhaust air function With flow control option Via individual sub-base
- Conforms to standard ISO 5599-1
- Symbol 00991805
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 1100 l/min
- Max. negative test pulse on 1 signal 1100 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Relative air humidity 0 - 90 %
- Pneumatic connection 3 Sub-base, size 1 as per ISO 5599-1
- Housing material Die-cast aluminum PA
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
