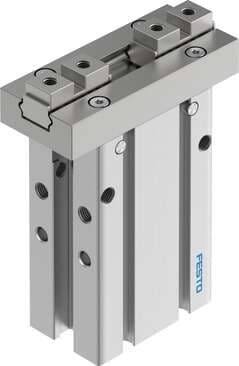

8116811 Festo Pneumatic Grippers

Product Details

• Stroke per gripper jaw
  6 mm
• Size
  16
• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  Parallel
• Total gripping force at 6 bar, closing
  86.8 N
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum torque on gripper jaw, Mx static
  0.34 Nm
• Maximum torque on gripper jaw, Mz static
  0.34 Nm
• Product weight
  129 g
• Type code
  DHPC
• Mode of operation
  Single-acting Open
• Symbol
  00997349
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -10 °C ... 60 °C
• Gripping force per gripper jaw at 6 bar, closing
  43.4 N
• Type of mounting
  Optionally: With internal thread and dowel pin
• Gripper jaw material
  High-alloy stainless steel
• Max. gripper jaw backlash Sz
  0 mm
• Number of gripper jaws
  2
• Design
  Connection direction at side Positively driven motion sequence
Max. operating frequency of pneumatic gripper
3 Hz
Operating pressure
1 bar ... 8 bar
Max. gripper jaw angular play ax, ay
0 deg
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Guide
Ball guide
Min. closing time at 6 bar
17 ms
Mass moment of inertia
0.22 kgcm²
Corrosion resistance class (CRC)
0 - No corrosion stress
Max. mass per external gripper finger
360 g
Pneumatic connection
M3
Note on materials
Free of copper and PTFE RoHS-compliant
Max. interchangeability
0.2 mm
Mounting position
Any
Position sensing
For proximity sensor
Min. opening time at 6 bar
18 ms
Maximum force on gripper jaw Fz, static
49 N
Maximum torque on gripper jaw, My static
0.68 Nm
Housing material
Aluminum, anodized
