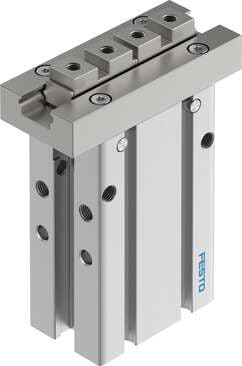

8116814 Festo Pneumatic Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  0 deg
• Number of gripper jaws
  2
• Position sensing
  For proximity sensor
• Min. opening time at 6 bar
  50 ms
• Ambient temperature
  -10 °C ... 60 °C
• Operating pressure
  1 bar ... 8 bar
• Max. interchangeability
  0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mode of operation
  Single-acting Closed
• Symbol
  00997348
• Min. closing time at 6 bar
  52 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum force on gripper jaw Fz, static
  49 N
• Maximum torque on gripper jaw, Mx static
  0.34 Nm
• Size
  16
• Max. gripper jaw backlash Sz
  0 mm
• Mounting position
  Any
• Gripper function
  Parallel
• Total gripping force at 6 bar, opening
  101 N
• Corrosion resistance class (CRC)
  0 - No corrosion stress
Gripping force per gripper jaw at 6 bar, opening
50.5 N
Product weight
129 g
Gripper jaw material
High-alloy stainless steel
Stroke per gripper jaw
6 mm
Type code
DHPC
Design
Connection direction at side Positively driven motion sequence
Max. operating frequency of pneumatic gripper
3 Hz
Mass moment of inertia
0.22 kgcm²
Pneumatic connection
M3
Note on materials
Free of copper and PTFE RoHS-compliant
Rotational symmetry
≤ 0.2 mm
Guide
Ball guide
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum torque on gripper jaw, My static
0.68 Nm
Housing material
Aluminum, anodized
Type of mounting
Optionally: With internal thread and dowel pin
Maximum torque on gripper jaw, Mz static
0.34 Nm
Max. mass per external gripper finger
360 g
