8536SAO12V08 Schneider Electric Industrial Automation Components

8536SAO12V08 on Powermatic Associates
Schneider Electric

Part#:8536SAO12V08

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

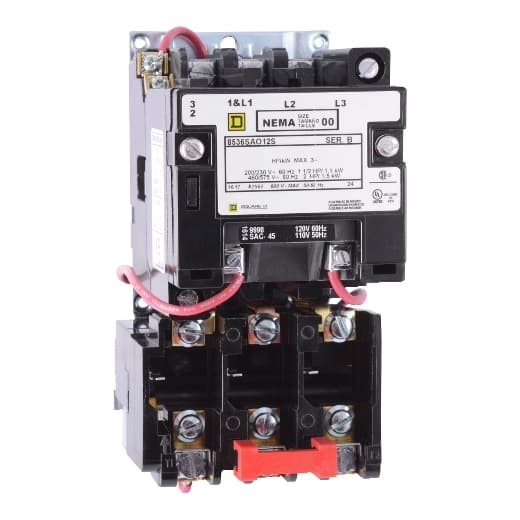

Schneider Electric - 8536SAO12V08

Product Details

  • Phase
    3 phase
  • Pilot Light
    Without pilot light
  • Control Circuit Type
    Common control circuit
  • Rated Current
    9 A
  • Height
    6.81 in (172.96 mm)
  • Starter Type
    Non reversing
  • Coil Voltage
    208 V AC 60 Hz
  • Depth
    4.22 in (107.19 mm)
  • Maximum Voltage Rating
    600 V AC
  • Number Of Poles
    3P
  • Control Units
    No control units
  • Product Range
    S
  • Type Of Overload
    Melting alloy 3
  • Auxiliary Contacts
    Without
  • Product Type
    Motor starter
  • Width
    3.50 in (88.90 mm)
  • NEMA Size
    00
  • Terminal Type
    Screw clamp terminals
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Horsepower Rating
    1.5 HP 200 V AC 1.5 HP 230 V AC 2 HP 460 V AC 2 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SAO12V08 on Powermatic Associates is $386.00. Order now.

8536SAO12V08 Related Documents

Catalog-1631035721582.pdfInstruction Sheet-1631035721585.pdfProduct Datasheet-1631035721590.pdf
