8536SBA2V06 Schneider Electric Industrial Automation Components

8536SBA2V06 on Powermatic Associates
Schneider Electric

Part#:8536SBA2V06

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

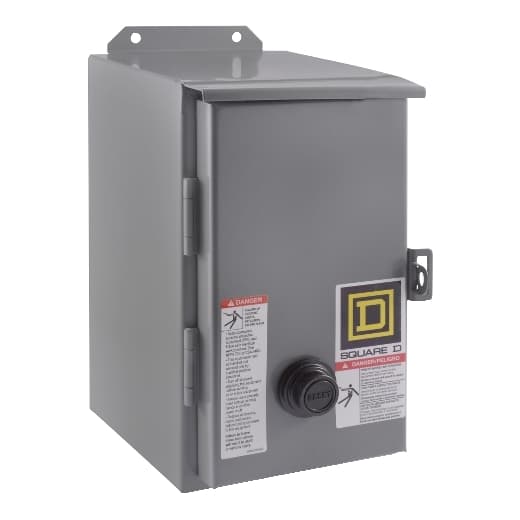

Schneider Electric - 8536SBA2V06

Product Details

  • NEMA Size
    0
  • Type Of Overload
    Melting alloy 3
  • Pilot Light
    Without pilot light
  • Depth
    8.53 in (216.66 mm)
  • Rated Current
    18 A
  • Product Type
    Motor starter
  • Auxiliary Contacts
    Without
  • Width
    6.38 in (162.05 mm)
  • Product Range
    S
  • Terminal Type
    Screw clamp terminals
  • Control Units
    No control units
  • Starter Type
    Non reversing
  • Control Circuit Type
    Common control circuit
  • Number Of Poles
    3P
  • Maximum Voltage Rating
    600 V AC
  • Phase
    3 phase
  • Height
    12.75 in (323.85 mm)
  • SCCR
    Circuit-breaker: 5 kA at 600 V AC Fuse: 5 kA at 600 V AC
  • Coil Voltage
    440 V AC 50 Hz 480 V AC 60 Hz
  • Horsepower Rating
    3 HP 200 V AC 3 HP 230 V AC 5 HP 460 V AC 5 HP 575 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8536SBA2V06 on Powermatic Associates is $689.00. Order now.

8536SBA2V06 Related Documents

Catalog-1631038006413.pdfInstruction Sheet-1631038006418.pdfProduct Datasheet-1631038006415.pdf
