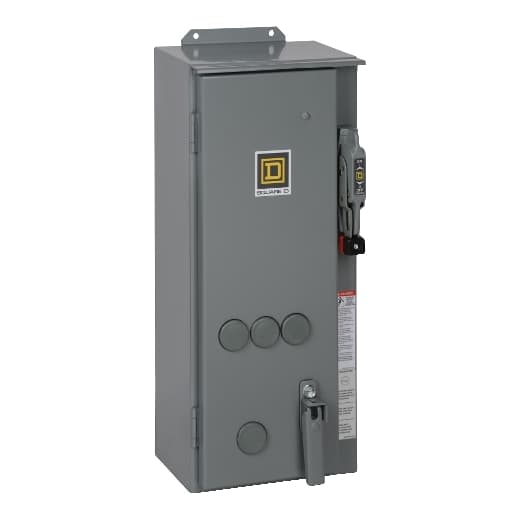

8538SCA44V02S Schneider Electric Industrial Automation Components

8538SCA44V02S on Powermatic Associates
Schneider Electric

Part#:8538SCA44V02S

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - 8538SCA44V02S

Product Details

  • Type
    S
  • Maximum Voltage Rating
    600 V AC
  • Number Of Poles
    3P
  • Thermal Overload Type
    Melting alloy 3
  • Width
    8.34 in (211.84 mm)
  • Line Rated Current
    27 A
  • Pilot Light
    No indicator
  • Depth
    9.5 in (241.30 mm)
  • Starter Type
    Non reversing
  • Disconnect Type
    Fusible disconnect switch R, 30 A
  • Product
    Combination Starter
  • Auxiliary Contacts
    Without
  • Control Units
    No control units
  • Height
    24.0 in (609.60 mm)
  • Control Circuit Type
    Separate control circuit
  • NEMA Size
    1
  • Horsepower Rating
    10 hp 460 V AC, 3 phase 10 hp 575 V AC, 3 phase
  • Control Circuit Voltage
    110 V AC 50 Hz 120 V AC 60 Hz

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 8538SCA44V02S on Powermatic Associates is $1,808.00. Order now.

8538SCA44V02S Related Documents

Catalog-1631040683894.pdfInstruction Sheet-1631040683887.pdfProduct Datasheet-1631040683884.pdf
