9080LBA163106 Schneider Electric Industrial Automation Components

9080LBA163106 on Powermatic Associates
Schneider Electric

Part#:9080LBA163106

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

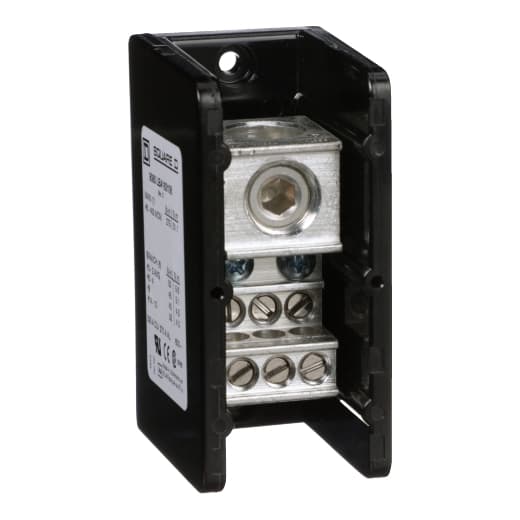

Schneider Electric - 9080LBA163106

Product Details

  • Depth
    2.91 in (73.91 mm)
  • Range
    9080LB
  • Electrical Connection
    Tin plated aluminium lugs
  • Mounting Type
    Surface mount
  • Block Material
    Phenolic block
  • Voltage Rating
    600 V AC/DC
  • Product
    Power Distribution Block
  • SCCR
    65 kA UL 508 A
  • Number Of Poles
    1
  • Width
    2.28 in (57.91 mm)
  • Height
    4.75 in (120.65 mm)
  • Short Circuit Current Rating
    65 kA
  • Ambient Air Temperature For Operation
    -40…302 °F (-40…150 °C)
  • End Barrier
    9080LB31
  • Current Rating
    335 A copper 270 A aluminium
  • Wire Size
    Line 1, AWG 6...400 kcmil, copper or aluminium Load 6, AWG 14...AWG 2, copper or aluminium
  • Terminals Per Pole
    1 line 6 load
  • Wire Stripping Length
    Line 1.06 in (26.92 mm) Load 0.56 in (14.22 mm) top Load 1 in (25.40 mm) bottom
  • Terminal Tightening Torque
    Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium Load lug 35 lbf.in (3.95 N.m) AWG 14 copper Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium Load lug 35 lbf

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 9080LBA163106 on Powermatic Associates is $71.26. Order now.
