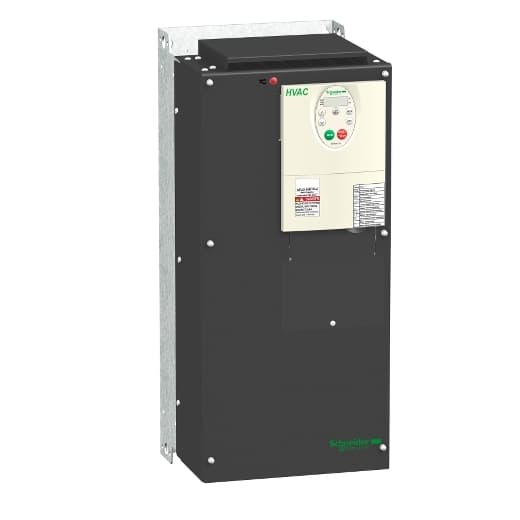

ATV212HD45N4 Schneider Electric Industrial Automation Components

Product Details

• Local Signalling
  for DC bus energized 1 LED (red)
• EMC Filter
  Class C2 EMC filter integrated
• Nominal Switching Frequency
  8 kHz
• Range Of Product
  Altivar 212
• Speed Drive Output Frequency
  0.5…200 Hz
• Torque Accuracy
  +/- 15 %
• Device Short Name
  ATV212
• Phase
  3 phase
• Product Destination
  Asynchronous motors
• Motor Power Kw
  45 kW
• Minimum Switching Current
  3 mA 24 V DC configurable relay logic
• Data Format
  8 bits, 1 stop, odd even or no configurable parity
• Depth
  9.61 in (244 mm)
• IP Degree Of Protection
  IP21
• Transmission Frame
  RTU
• Width
  9.45 in (240 mm)
• Motor Starter Type
  Variable speed drive
• Height
  21.65 in (550 mm)
• Power Dissipation In W
  1253 W
• Functionality
  Mid
Air Flow
113331.84 Gal/hr(US) (429 m3/h)
Specific Application
HVAC
Speed Accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn
Option Card
Communication card LonWorks
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Apparent Power
61.9 kVA 380 V
Analogue Input Number
2
Discrete Output Number
2
Operating Position
Vertical +/- 10 degree
Assembly Style
With heat sink
Supply Voltage Limits
323…528 V
Speed Range
1…10
Output Voltage
<= power supply voltage
Isolation
Electrical between power and control
Braking To Standstill
By DC injection
Maximum Horse Power Rating
60 hp
Prospective Line Isc
22 kA
Regulation Loop
Adjustable PI regulator
Analogue Output Number
1
Transmission Rate
9600 bps or 19200 bps
Product Specific Application
Pumps and fans in HVAC
Product Or Component Type
Variable speed drive
Maximum Transient Current
103.4 A 60 s
Transient Overtorque
120 % of nominal motor torque +/- 10 % 60 s
Physical Interface
2-wire RS 485
Number Of Addresses
1…247
Supply Frequency
50...60 Hz - 5...5 %
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Type Of Polarization
No impedance
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.08 in² (50 mm²) / AWG 1/0
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Motor Power Range AC-3
30…50 kW 380…440 V 3 phase 30…50 kW 480…500 V 3 phase
Continuous Output Current
94 A 380 V 94 A 460 V
Switching Frequency
6...16 kHz adjustable 8...16 kHz with derating factor
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Acceleration And Deceleration Ramps
Linear adjustable separately from 0.01 to 3200 s Automatic based on the load
Line Current
83.8 A 380 V 65.9 A 480 V
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Connector Type
1 RJ45 1 open style
Dielectric Strength
3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Tightening Torque
5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) 212.42 lbf.in (24 N.m), 212 lb.in L1/R, L2/S, L3/T)
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Variable Speed Drive Application Selection
Building - HVAC Compressor for scroll Building - HVAC Fan Building - HVAC Pump
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Motor Slip Compensation
Adjustable Not available in voltage/frequency ratio motor control Automatic whatever the load
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Communication Port Protocol
Modbus LonWorks METASYS N2 BACnet APOGEE FLN
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Asynchronous Motor Control Profile
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Flux vector control without sensor, stan
Communication Service
Read device identification (43) Write multiple registers (16) 2 words maximum Time out setting from 0.1 to 100 s Read holding registers (03) 2 words maximum Monitoring inhibitable Write single register (06)
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
