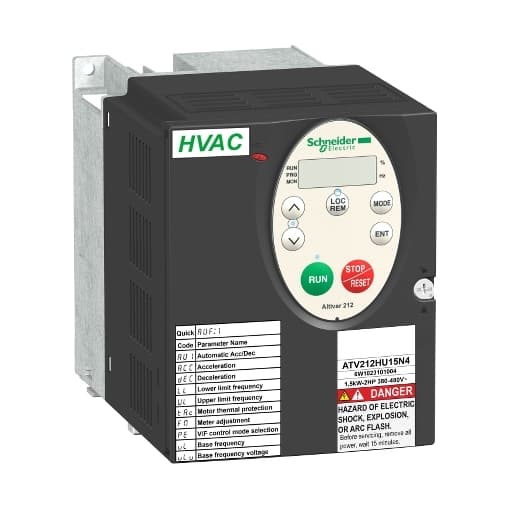

ATV212HU15N4 Schneider Electric Industrial Automation Components

Product Details

• Phase
  3 phase
• Apparent Power
  2.8 kVA 380 V
• Speed Range
  1…10
• Option Card
  Communication card LonWorks
• Functionality
  Mid
• Regulation Loop
  Adjustable PI regulator
• Analogue Input Number
  2
• Analogue Output Number
  1
• Product Or Component Type
  Variable speed drive
• Device Short Name
  ATV212
• Product Specific Application
  Pumps and fans in HVAC
• Range Of Product
  Altivar 212
• Supply Frequency
  50...60 Hz - 5...5 %
• Supply Voltage Limits
  323…528 V
• Prospective Line Isc
  5 kA
• Torque Accuracy
  +/- 15 %
• Output Voltage
  <= power supply voltage
• Local Signalling
  for DC bus energized 1 LED (red)
• Assembly Style
  With heat sink
• EMC Filter
  Class C2 EMC filter integrated
Nominal Switching Frequency
12 kHz
Discrete Output Number
2
Insulation Resistance
>= 1 mOhm 500 V DC for 1 minute
Number Of Addresses
1…247
Maximum Horse Power Rating
2 hp
Speed Accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn
Type Of Polarization
No impedance
Minimum Switching Current
3 mA 24 V DC configurable relay logic
Data Format
8 bits, 1 stop, odd even or no configurable parity
Power Dissipation In W
78 W
Motor Power Kw
1.5 kW
Maximum Transient Current
4 A 60 s
Transient Overtorque
120 % of nominal motor torque +/- 10 % 60 s
Product Destination
Asynchronous motors
Physical Interface
2-wire RS 485
Width
4.21 in (107 mm)
IP Degree Of Protection
IP21
[Us] Rated Supply Voltage
380...480 V - 15...10 %
Speed Drive Output Frequency
0.5…200 Hz
Isolation
Electrical between power and control
Braking To Standstill
By DC injection
Transmission Rate
9600 bps or 19200 bps
Depth
5.91 in (150 mm)
Net Weight
4.41 lb(US) (2 kg)
Motor Starter Type
Variable speed drive
Transmission Frame
RTU
Height
5.63 in (143 mm)
Operating Position
Vertical +/- 10 degree
Air Flow
7132.77 Gal/hr(US) (27 m3/h)
Specific Application
HVAC
Tightening Torque
11.51 lbf.in (1.3 N.m), 11.5 lb.in L1/R, L2/S, L3/T) 5.31 lbf.in (0.6 N.m) VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Line Current
2.5 A 480 V 3.2 A 380 V
Continuous Output Current
3.7 A 380 V 3.7 A 460 V
Supply
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection Internal supply 24 V DC 21…27 V), <200 A overload and short-circuit protection
Electrical Connection
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 0.00 in² (2.5 mm²) / AWG 14 L1/R, L2/S, L3/T terminal 0.01 in² (6 mm²) / AWG 10
Motor Power Range AC-3
1.1…2 kW 380…440 V 3 phase 1.1…2 kW 480…500 V 3 phase
Switching Frequency
6...16 kHz adjustable 12...16 kHz with derating factor
Dielectric Strength
3535 V DC between earth and power terminals 5092 V DC between control and power terminals
Discrete Input Logic
Positive logic (source) F, R, RES), <= 5 V, >= 11 V Negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Frequency Resolution
Display unit 0.1 Hz Analog input: 0.024/50 Hz
Acceleration And Deceleration Ramps
Linear adjustable separately from 0.01 to 3200 s Automatic based on the load
Connector Type
1 open style 1 RJ45
Analogue Output Type
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Variable Speed Drive Application Selection
Compressor for scroll Building - HVAC Fan Building - HVAC Pump Building - HVAC
Linearity Error
VIA +/- 0.15 % of maximum value input VIB +/- 0.15 % of maximum value input FM +/- 0.2 % output
Accuracy
+/- 0.6 % VIA) for a temperature variation 60 °C +/- 0.6 % VIB) for a temperature variation 60 °C +/- 1 % FM) for a temperature variation 60 °C
Discrete Output Type
Configurable relay logic FLA, FLC) NO - 100000 cycles Configurable relay logic FLB, FLC) NC - 100000 cycles Configurable relay logic RY, RC) NO - 100000 cycles
Discrete Input Type
F programmable 24 V DC level 1 PLC 4700 Ohm R programmable 24 V DC level 1 PLC 4700 Ohm RES programmable 24 V DC level 1 PLC 4700 Ohm
Motor Slip Compensation
Adjustable Not available in voltage/frequency ratio motor control Automatic whatever the load
Type Of Cable
Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC With UL Type 1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC
Analogue Input Type
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bit
Response Time
FM 2 ms +/- 0.5 ms analog FLA, FLC 7 ms +/- 0.5 ms discrete FLB, FLC 7 ms +/- 0.5 ms discrete RY, RC 7 ms +/- 0.5 ms discrete
Maximum Switching Current
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Communication Port Protocol
APOGEE FLN BACnet Modbus LonWorks METASYS N2
Sampling Duration
2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog
Asynchronous Motor Control Profile
Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, 5 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio, 2 points Flux vector control without sensor, stan
Communication Service
Read device identification (43) Time out setting from 0.1 to 100 s Monitoring inhibitable Write single register (06) Read holding registers (03) 2 words maximum Write multiple registers (16) 2 words maximum
Protection Type
Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control
