BDF36020 Schneider Electric Industrial Automation Components

BDF36020 on Powermatic Associates
Schneider Electric

Part#:BDF36020

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

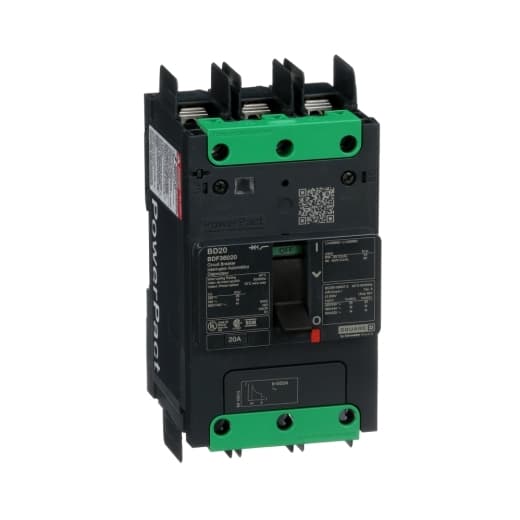

Square D by Schneider Electric BDF36020 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDF sub-range, featuring a PowerPact B-Frame 100 TMD 3P-3t design. It has a rated current of 20A and operates at a rated voltage of 600Vac 600Y/347Vac, with a rated impulse voltage (Uimp) of 8 kV. This MCCB offers a connection via a Term. nut kit for fixed busbar connection on both line and load sides and provides a degree of protection of IP40. It is designed for mounting either fixed on a DIN rail or as an individual unit mount on a plate, with a 3-pole (3P) configuration. The MCCB has a net height of 137 mm, a net depth of 80 mm, and a net width of 81 mm. It falls under utilisation category A and features protection settings including over-current fixed at 20A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated insulation voltage (Ui) is 800 V, with a rated operating voltage (Ue) of 525 V, and it offers thermal and magnetic protection functions. The trip current rating is 20 AT, with a frame current rating of 100 AF. It operates via a toggle (manual) and has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Product Name
    PowerPact B
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Number Of Poles
    3P
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • 9 Mm Pitches
    9
  • Device Application
    Distribution
  • Line Rated Current
    20 A
  • Connection Pitch
    1.06 in (27 mm)
  • Net Weight
    2.04 lb(US) (0.924 kg)
  • Device Short Name
    BD 020
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Protected Poles Description
    3t
  • Breaking Capacity Code
    D
  • Product Or Component Type
    Circuit breaker
  • Trip Unit Technology
    Thermal-magnetic
  • Electrical Connection
    Terminal nut ON and OFF end
  • Color
    Grey (RAL 7016)
  • Range
    PowerPact
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Utilisation Category
    Category A
  • Height
    5.39 in (137 mm)
  • Control Type
    Toggle
  • Continuous Current Rating
    80 %
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Suitability For Isolation
    Yes IEC 60947-2
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Mechanical Durability
    15000 cycles IEC 947-1 Annex K ed 5.2
  • Depth
    3.15 in (80 mm)
  • Width
    3.19 in (81 mm)
  • Quantity Per Set
    Set of 1
  • Trip Unit Name
    TM-D
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Mounting Mode
    Clip-on 35 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 14...AWG 8 aluminium/copper AWG 6...AWG 3/0 aluminium/copper
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in) 1 alarm switch SD plug-in)
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 18 kA 240 V AC 50/60 Hz UL 489 Icu 25 kA 480/277 V AC 50/60 Hz UL 489 Icu 14 kA 480 V AC 50/60 Hz UL 489 18 kA 600Y/347 V AC 50/60 Hz UL 489 14 kA 250 V DC UL 489 25 kA Icu 18 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDF36020 on Powermatic Associates is $979.00. Order now.
