Part#:BDL26025

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

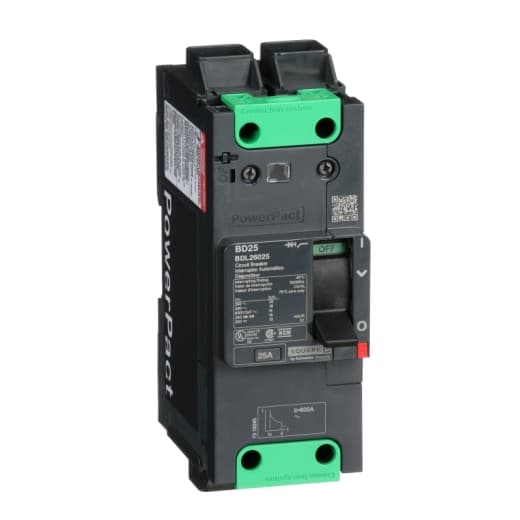

Square D by Schneider Electric BDL26025 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 2P 25A 600Y/347Vac with a 14kA breaking capacity and Everlink (Creep compensating) lugs on both line and load sides for connections. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 25A, with a rated voltage (AC) of 600Vac 600Y/347Vac. This MCCB is designed for fixed mounting on DIN rail or as an individual unit mount on a plate, with a 2-pole (2P) configuration. It measures 137 mm in height, 80 mm in depth, and 54 mm in width. The utilisation category is A. It features over-current protection fixed at 25A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 600A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. Protection functions include thermal protection for overload and magnetic protection for short-circuit, with a trip current rating of 25 AT. Its electrical durability with load is rated for 10,000 operations at 440Vac; In, and it has a frame current rating of 100 AF. The operating mode is manual toggle, and the short circuit breaking rating varies from 25kA at 240Vac to 10kA at 250Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display.

Product Details

  • Breaking Capacity
    25 kA 208Y/120 V AC 50/60 Hz UL 489 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480/277 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz UL 489 14 kA 600Y/347 V AC 50/60 Hz UL 489 10 kA 250 V DC UL 489
  • [Ics] Rated Service Breaking Capacity
    25 kA 220...240 V AC 50/60 Hz IEC 60947-2 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 18 kA 440 V AC 50/60 Hz IEC 60947-2
  • Electrical Connection
    Everlink lug line Everlink lug load
  • Number Of Slots
    1 auxiliary switch OF plug-in) 1 voltage release MN or MX plug-in)
  • Mounting Mode
    Clip-on 35 x 15 mm symmetrical DIN rail) By screws plate)
  • AWG Gauge
    AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 4) 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 3...AWG 3/0)
  • Net Weight
    1.70 lb(US) (0.769 kg)
  • Depth
    3.15 in (80 mm)
  • 9 Mm Pitches
    6
  • Color
    Grey (RAL 7016)
  • Power Wire Stripping Length
    0.79 in (20 mm)
  • Quantity Per Set
    Set of 1
  • Width
    2.13 in (54 mm)
  • Height
    5.39 in (137 mm)
  • Local Signalling
    for presence of auxiliary contacts flag (green)
  • Electrical Durability
    10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
  • Mechanical Durability
    20000 cycles IEC 947-1 Annex K ed 5.2
  • Connection Pitch
    1.06 in (27 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947-2
  • Trip Unit Technology
    Thermal-magnetic
  • Suitability For Isolation
    Yes conforming to IEC 60947-2
  • [Ui] Rated Insulation Voltage
    800 V IEC 60947-2
  • Utilisation Category
    Category A
  • [Ue] Rated Operational Voltage
    525 V AC 50/60 Hz UL 489
  • Continuous Current Rating
    80 %
  • Breaking Capacity Code
    D
  • Line Rated Current
    25 A
  • Control Type
    Toggle
  • Device Short Name
    BD 025
  • Number Of Poles
    2P
  • Product Or Component Type
    Circuit breaker
  • Product Name
    PowerPact B
  • Device Application
    Distribution
  • Range
    PowerPact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BDL26025 on Powermatic Associates is $783.00. Order now.

BDL26025 Related Documents

Instruction Sheet-1631033893736.pdfProduct Datasheet-1631033893739.pdfCatalog-1631033893741.pdf
