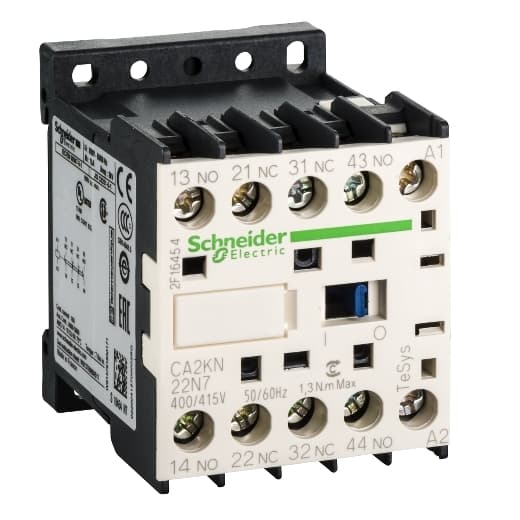

CA2KN22N7 Schneider Electric Industrial Automation Components

Product Details

• [Ith] Conventional Free Air Thermal Current
  10 A 122 °F (50 °C)
• Mechanical Durability
  10 Mcycles
• Insulation Resistance
  > 10 MOhm
• Range
  TeSys
• Irms Rated Making Capacity
  110 A IEC 60947
• Immunity To Microbreaks
  2 ms
• Minimum Switching Voltage
  17 V
• Control Circuit Type
  AC 50/60 Hz
• Hold-In Power Consumption In VA
  4.5 VA 68 °F (20 °C))
• Depth
  2.24 in (57 mm)
• [Uc] Control Circuit Voltage
  400...415 V AC 50/60 Hz
• Inrush Power In VA
  30 VA 68 °F (20 °C))
• Height
  2.28 in (58 mm)
• Product Or Component Type
  Control relay
• Contactor Application
  Control circuit
• Minimum Switching Current
  5 mA
• Device Short Name
  CA2K
• Product Name
  TeSys CAK
• Non Overlap Distance
  0.02 in (0.5 mm)
• Maximum Operating Rate
  10000 cyc/h
Net Weight
0.40 lb(US) (0.18 kg)
Pole Contact Composition
2 NO + 2 NC
Heat Dissipation
1.3 W
[Ue] Rated Operational Voltage
<= 690 V <= 400 Hz
Width
1.77 in (45 mm)
Tightening Torque
11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm)
Associated Fuse Rating
10 A gG IEC 60947 10 A gG VDE 0660
Mounting Support
Rail Plate
Utilisation Category
AC-15 DC-13
Control Circuit Voltage Limits
Drop-out 0.2...0.75 Uc 122 °F (50 °C)) Operational 0.8...1.15 Uc 122 °F (50 °C))
Connections - Terminals
screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)fle
Operating Time
10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing 15...25 ms coil de-energisation and NC closing 5...15 ms coil energisation and NC opening
[Ui] Rated Insulation Voltage
690 V IEC 60947 750 V VDE 0110 group C 690 V BS 5424 600 V CSA C22.2 No 14
