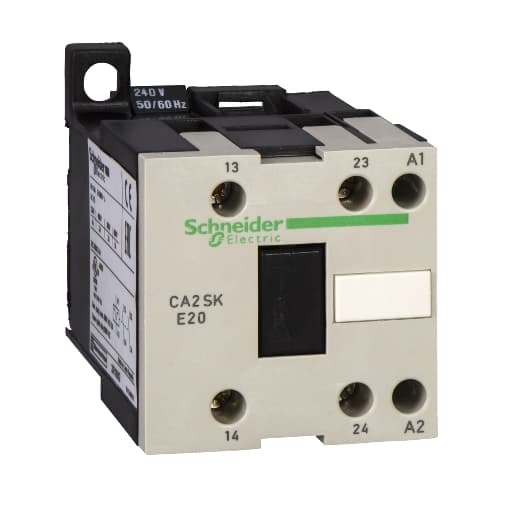

CA2SKE20M7 Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Control relay
• Mechanical Durability
  10 Mcycles
• Device Short Name
  CA2SKE
• Tightening Torque
  7.08 lbf.in (0.8 N.m) screw clamp terminals pozidriv No 1
• Heat Dissipation
  1.5 W
• Control Circuit Type
  AC 50/60 Hz
• Inrush Power In VA
  23 VA 68 °F (20 °C))
• Product Name
  TeSys CASK
• Range
  TeSys
• Net Weight
  0.29 lb(US) (0.132 kg)
• Contactor Application
  Control circuit
• [Ith] Conventional Free Air Thermal Current
  10 A 131 °F (55 °C)
• Maximum Operating Rate
  1200 cyc/h
• [Ue] Rated Operational Voltage
  <= 690 V <= 400 Hz
• Height
  2.28 in (58 mm)
• Depth
  2.68 in (68 mm)
• Hold-In Power Consumption In VA
  4.9 VA 68 °F (20 °C))
• [Uc] Control Circuit Voltage
  220 V AC 50/60 Hz
• Pole Contact Composition
  2 NO
• Width
  1.77 in (45 mm)
Control Circuit Voltage Limits
Drop-out 0.2...0.75 Uc 122 °F (50 °C)) Operational 0.85...1.1 Uc 122 °F (50 °C))
Operating Time
6...8 ms coil de-energisation and NO opening 7...14 ms coil energisation and NO closing
Associated Fuse Rating
10 A gL VDE 0660 10 A gL IEC 60947
Mounting Support
Rail Plate
Utilisation Category
AC-15 DC-13
Connections - Terminals
screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²)solid screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.5…6 mm²)flexible without cable end screw clamp terminals 1 0.00…0.01 in² (0.35…6 mm²)f
[Ui] Rated Insulation Voltage
690 V IEC 60947 690 V VDE 0110 group C 690 V BS 5424 690 V UL 508 690 V CSA C22.2 No 14
