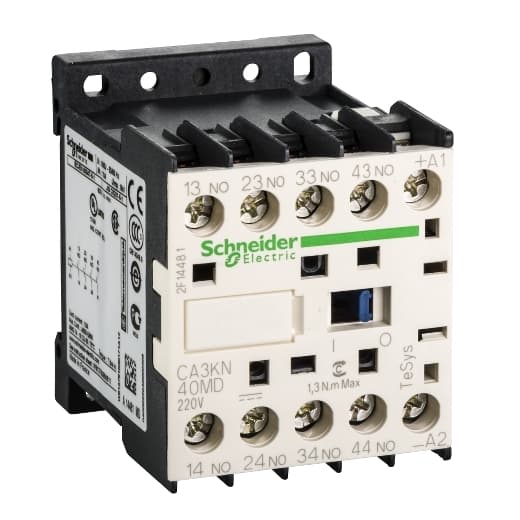

CA3KN40MD Schneider Electric Industrial Automation Components

Product Details

• [Ue] Rated Operational Voltage
  <= 690 V <= 400 Hz
• Hold-In Power Consumption In W
  3 W 68 °F (20 °C)
• Immunity To Microbreaks
  2 ms
• Height
  2.28 in (58 mm)
• Contactor Application
  Control circuit
• Product Name
  TeSys CAK
• [Uc] Control Circuit Voltage
  220 V DC
• Non Overlap Distance
  0.02 in (0.5 mm)
• Pole Contact Composition
  4 NO
• Heat Dissipation
  3 W
• Control Circuit Type
  DC standard
• Minimum Switching Voltage
  17 V
• Device Short Name
  CA3K
• Inrush Power In W
  3 W 68 °F (20 °C))
• Depth
  2.24 in (57 mm)
• Product Or Component Type
  Control relay
• Irms Rated Making Capacity
  110 A IEC 60947
• Mechanical Durability
  20 Mcycles
• Insulation Resistance
  > 10 MOhm
• Range
  TeSys
[Ith] Conventional Free Air Thermal Current
10 A 122 °F (50 °C)
Maximum Operating Rate
10000 cyc/h
Width
1.77 in (45 mm)
Minimum Switching Current
5 mA
Net Weight
0.50 lb(US) (0.225 kg)
Mounting Support
Rail Plate
Utilisation Category
AC-15 DC-13
Associated Fuse Rating
10 A gG IEC 60947 10 A gG VDE 0660
Operating Time
10 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
Tightening Torque
11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm 11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 0.24 in (6 mm)
Control Circuit Voltage Limits
Operational 0.8...1.15 Uc 122 °F (50 °C)) Drop-out 0.1...0.75 Uc 122 °F (50 °C))
[Ui] Rated Insulation Voltage
690 V IEC 60947 750 V VDE 0110 group C 690 V BS 5424 600 V CSA C22.2 No 14
Connections - Terminals
screw clamp terminals 1 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 2 0.00…0.01 in² (1.5…4 mm²)solid screw clamp terminals 1 0.00…0.01 in² (0.75…4 mm²)flexible with cable end screw clamp terminals 2 0.00…0.01 in² (0.75…4 mm²)fle
