CH365NR Schneider Electric Industrial Automation Components

CH365NR on Powermatic Associates
Schneider Electric

Part#:CH365NR

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

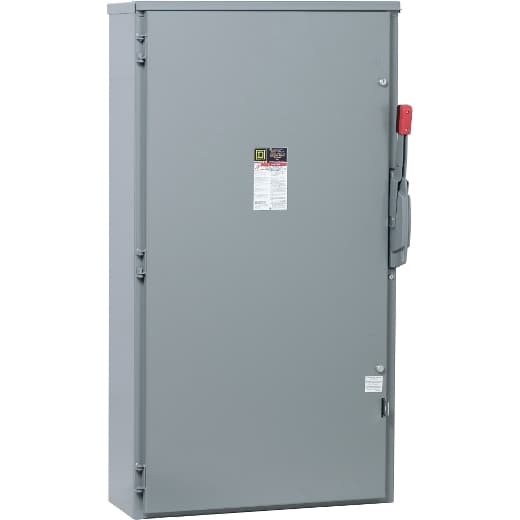

Schneider Electric - CH365NR

Product Details

  • Width
    27.88 in (708.15 mm)
  • Line Rated Current
    400 A
  • Number Of Poles
    3
  • Depth
    10.13 in (257.30 mm)
  • Voltage Rating
    600 V AC/DC
  • Tightening Torque
    550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
  • Product
    Single Throw Safety Switch
  • Mounting Type
    Surface
  • Electrical Connection
    Lugs
  • Factory Installed Neutral
    Neutral (factory installed)
  • Disconnect Type
    Fusible disconnect
  • Duty Rating
    Heavy duty
  • Height
    50.31 in (1277.87 mm)
  • Wire Size
    AWG 1/0...750 kcmil copper or aluminium
  • Maximum Horse Power Rating
    100 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 125 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 350 hp 600 V at AC 50-60 Hz for 3 phase conform

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CH365NR on Powermatic Associates is $6,053.00. Order now.
