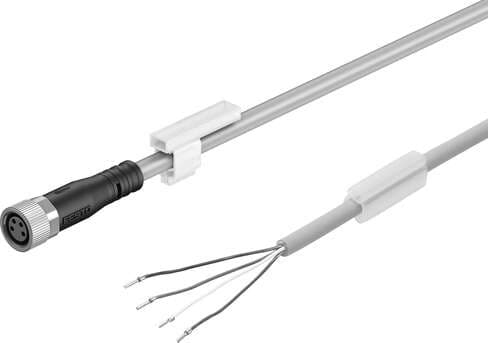

541331 Festo Cable Assemblies

Product Details

• Type code
  NEBU
• Electrical connection 1, function
  Field device end
• Electrical connection 1, type of mounting
  Screw-type lock
• Electrical connection for input 1, connection pattern
  00995384
• Current rating at 40°C
  4 A
• Cable diameter tolerance
  ± 0.1 mm
• Ambient temperature with flexible cable installation
  -5 °C ... 70 °C
• Housing material
  TPE-U(PUR)
• Cable designation
  With 2x label holders
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 2, connection type
  Cable
• Surge resistance
  1.5 kV
• Bending radius, fixed cable installation
  14 mm
• Nominal conductor cross section
  0.25 mm²
• Degree of protection
  IP65 IP69K
• Material of cable sheath
  TPE-U(PUR)
• Material of screw-type lock
  Brass, nickel-plated
• Insulating sheath material
  PP
• Conforms to standard
  EN 61076-2-101
• Product weight
  146 g
Electrical connection 1, connection type
Socket
Electrical connection 1, number of pins/wires
5
Electrical connection 2, number of pins/wires
5
Operating voltage range AC
0 V ... 60 V
Cable diameter
4.5 mm
Special features
Oil-resistant
Contamination level
3
Material of pin contacts
Copper alloy, gold-plated
Explosion prevention and protection
Observe the information on the certificate Zone 22 (ATEX)
Electrical connection 1, connection technology
M12x1 A-coded as per EN 61076-2-101
Electrical connection 2, function
Control side
Electrical connection 2, occupied pins/wires
5
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Cable characteristic
Standard
Ambient temperature
-25 °C ... 70 °C
Note on materials
Free of copper and PTFE Free of phosphoric acid ester
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Seals material
NBR
Electrical connection 1, design
Round
Electrical connection 1, occupied pins/wires
5
Electrical connection 2, connection technology
Open end
DC operating voltage range
0 V ... 60 V
Cable length
5 m
Bending radius, flexible cable installation
46 mm
Cable design
5 x 0.25 mm²
Note on degree of protection
In mounted state
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Color cable sheath
Gray
Housing colour
Black
