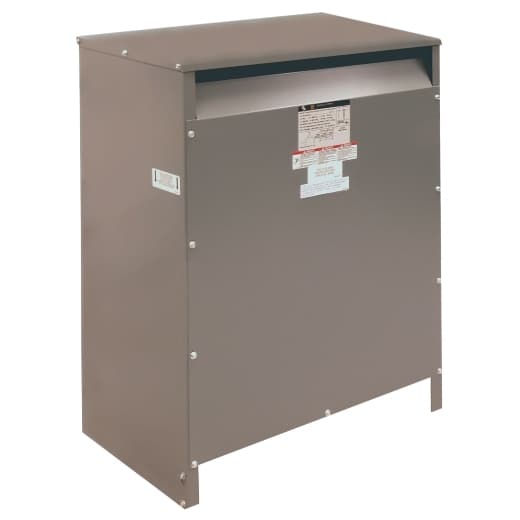

EE75S3H Schneider Electric Industrial Automation Components

EE75S3H on Powermatic Associates
Schneider Electric

Part#:EE75S3H

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

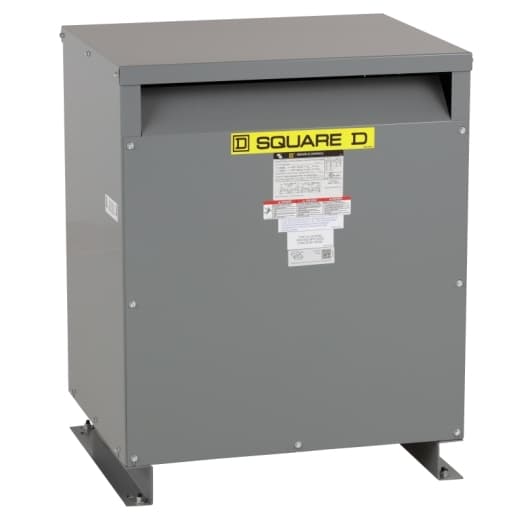

Schneider Electric - EE75S3H

Product Details

  • Insulation Temperature
    428 °F (220 °C)
  • Phase
    1 phase
  • Primary Voltage
    240 x 480 V
  • Secondary Voltage
    120/240 V
  • Enclosure Code
    21D
  • Temperature Rise
    150 °C
  • Enclosure Type
    NEMA 2
  • Product
    Energy Efficient Transformer
  • Full Capacity Taps
    6 2.5 % 2+ 4-
  • Power Rating
    75 kVA
  • Winding Material
    Aluminium

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EE75S3H on Powermatic Associates is $14,069.00. Order now.
