EZM32000CB Schneider Electric Industrial Automation Components

EZM32000CB on Powermatic Associates
Schneider Electric

Part#:EZM32000CB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

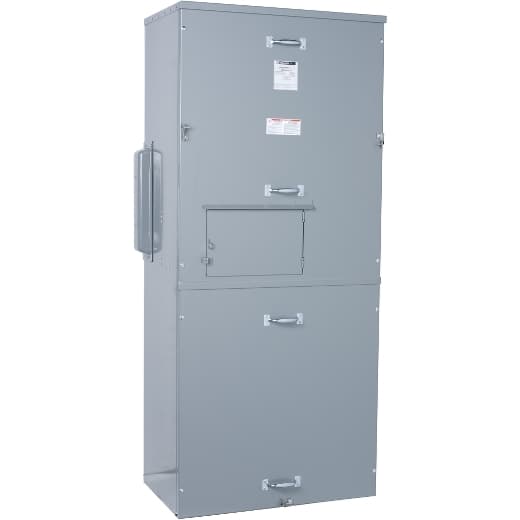

Square D by Schneider Electric EZM32000CB is a meter center main unit designed for surface mounting. It features a steel enclosure and aluminium/copper busbars, ensuring compatibility with a variety of wiring configurations. This unit is protected to a NEMA 3R degree, making it suitable for both indoor and rainproof applications. With dimensions of H1745mm x W767mm x D466mm (H68.7" x W30.19" x D18.33"), it supports a rated voltage of 208Y/120Vac and 240/120Vac (Delta) across a three-phase (3PH-4W) network. The EZM32000CB is pre-equipped with an incoming breaker for three phases in and out, offering a main rated current of 2000A and a busbar rated current of 1200A. It accommodates 1 x 6AWG...300kcmil aluminium/copper lugs for ground and 6 x 1/0AWG...700kcmil aluminium/copper lugs for both line and neutral connections.

Product Details

  • Bus Rated Current
    1200 A
  • Device Mounting
    Surface
  • Range Of Product
    EZ meter-pak
  • Material
    Aluminium/copper busbar
  • Main Type
    Main Circuit Breaker
  • Depth
    18.33 in (465.58 mm)
  • Product Or Component Type
    Meter center main unit
  • Width
    30.19 in (766.83 mm)
  • Enclosure Material
    Steel
  • Height
    68.70 in (1744.98 mm)
  • Main Rated Current
    2000 A
  • Wiring Configuration
    4-wire
  • Included Items
    Closing plate Circuit-breaker3P 2000 A 65 kA
  • Number Of Phases
    3 phase in 3 phase out
  • Service Feed Location
    OH UG
  • [Ue] Rated Operational Voltage
    208Y/120 V AC 240/120 V delta AC
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 6 AWG 1/0...700 kcmil aluminium/copper) line Lugs 6 AWG 1/0...700 kcmil aluminium/copper) neutral

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM32000CB on Powermatic Associates is $57,518.00. Order now.
