H226AWK Schneider Electric Industrial Automation Components

H226AWK on Powermatic Associates
Schneider Electric

Part#:H226AWK

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

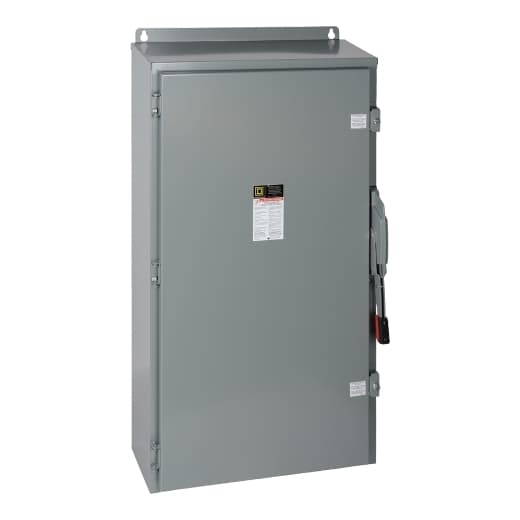

Schneider Electric - H226AWK

Product Details

  • Number Of Poles
    2
  • Wiring Configuration
    2-wire
  • Phase
    3 phase
  • Enclosure Rating
    NEMA 3R/12 galvannealed steel
  • Width
    26.25 in (666.75 mm)
  • Device Application
    Heavy application
  • Mounting Type
    Surface
  • Product
    Single Throw Safety Switch
  • Duty Rating
    Heavy duty
  • Tightening Torque
    375 lbf.in (42.37 N.m) (AWG 3/0...500 kcmil)
  • Net Weight
    175.05 lb(US) (79.4 kg)
  • Factory Installed Neutral
    None
  • Wire Size
    AWG 3/0...500 kcmil copper or aluminium
  • Disconnect Type
    Fusible disconnect
  • Electrical Connection
    Lugs
  • Height
    46.25 in (1174.75 mm)
  • Current Rating
    600 A
  • Depth
    10.13 in (257.30 mm)
  • Short Circuit Current Rating
    10 kA H or K 200 kA R, J or L
  • Fuse Type
    H or K R, J or L
  • Voltage Rating
    250 V DC 240 V AC
  • Maximum Horse Power Rating
    75 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 200 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 250 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H226AWK on Powermatic Associates is $9,814.50. Order now.
