HC4486WP Schneider Electric Industrial Automation Components

HC4486WP on Powermatic Associates
Schneider Electric

Part#:HC4486WP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

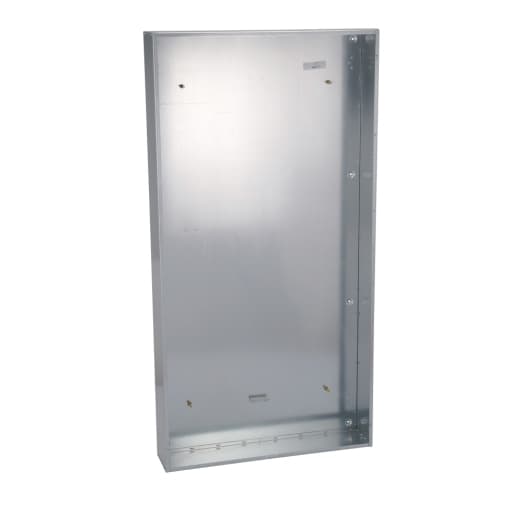

Square D by Schneider Electric HC4486WP is a panelboard from the HCR-U sub-range designed for enclosure types 3R/12. It features dimensions of H2184mm x W1118mm (H86" x W44") and is rated for a current of 1200A. This panelboard is built to offer a degree of protection compliant with NEMA 3R and NEMA 12 standards.

Product Details

  • Enclosure Nominal Height
    85.98 in (2184 mm)
  • Net Weight
    337.99 lb(US) (153.31 kg)
  • Range Of Product
    I-Line
  • Product Or Component Type
    Enclosure
  • Device Short Name
    HCR-U
  • Device Application
    Panelboard
  • Enclosure Nominal Depth
    9.49 in (241 mm)
  • Enclosure Nominal Width
    44.02 in (1118 mm)
  • Line Rated Current
    1200 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HC4486WP on Powermatic Associates is $7,310.00. Order now.

HC4486WP Related Documents

Product Datasheet-1631034671854.pdfInstruction Sheet-1631034671885.pdfCatalog-1631034671888.pdf
