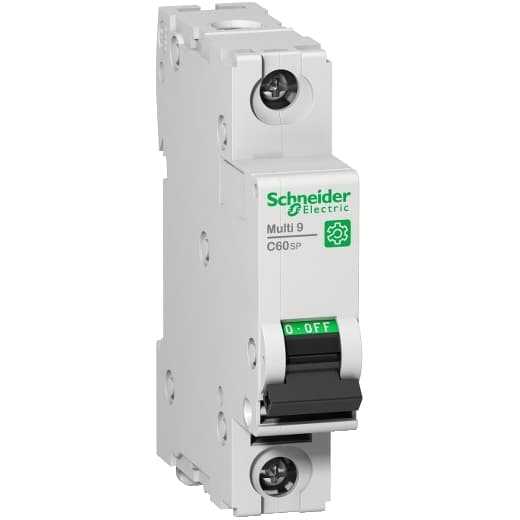

M9U21110 Schneider Electric Industrial Automation Components

Product Details

• Line Rated Current
  10 A 77 °F (25 °C) EN/IEC 60947-2
• Control Type
  Toggle
• Earth-Leakage Protection
  Without
• Color
  Gray
• Poles Description
  1P
• Curve Code
  C
• [Uimp] Rated Impulse Withstand Voltage
  6 kVEN/IEC 60947-2
• Net Weight
  0.28 lb(US) (0.128 kg)
• Number Of Protected Poles
  1
• Utilisation Category
  Category A conforming to EN/IEC 60947-2
• Magnetic Tripping Limit
  7...10 x In DC
• Local Signalling
  ON/OFF indication
• Range
  Multi 9
• Suitability For Isolation
  Yes EN/IEC 60947-2
• Mounting Support
  DIN rail
• Provision For Padlocking
  Padlockable
• Device Application
  Distribution
• Trip Unit Technology
  Thermal-magnetic
• Depth
  2.87 in (73 mm)
• Product Name
  Multi 9 C60H-DC
Contact Position Indicator
Yes
Height
3.19 in (81 mm)
Wire Stripping Length
0.55 in (14 mm) top or bottom
Network Type
DC
Mounting Mode
Clip-on
Mechanical Durability
20000 cycles
Product Or Component Type
Miniature circuit-breaker
9 Mm Pitches
2
Device Short Name
C60H-DC
[Ui] Rated Insulation Voltage
500 V DC EN/IEC 60947-2
Width
0.71 in (18 mm)
Tightening Torque
22.13 lbf.in (2.5 N.m) top or bottom
Electrical Durability
3000 cycles 250 V DC L/R = 2 ms 6000 cycles 250 V DC
Connections - Terminals
Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - rigid stranded Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AW
Product Certifications
IEC CCC UR
Standards
EN/IEC 60947-2 GB 14048.2 UL 1077
[Ue] Rated Operational Voltage
250 V DC 110 V DC 220 V DC
[Ics] Rated Service Breaking Capacity
7.5 kA 75 % EN/IEC 60947-2 - 220 V DC 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC 15 kA 75 % EN/IEC 60947-2 - 110 V DC 7.5 kA 75 % GB 14048.2 - 220 V DC 4.5 kA 75 % GB 14048.2 - 250 V DC 15 kA 75 % GB 14048.2 - 110 V DC
Breaking Capacity
10 kA Icu 220 V DC EN/IEC 60947-2 6 kA Icu 250 V DC EN/IEC 60947-2 20 kA Icu 110 V DC EN/IEC 60947-2 5 kA AIR 12...250 V DC UL 1077 10 kA Icu 220 V DC GB 14048.2 6 kA Icu 250 V DC GB 14048.2 20 kA Icu 110 V DC GB 14048.2
