Part#:HDA36125

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

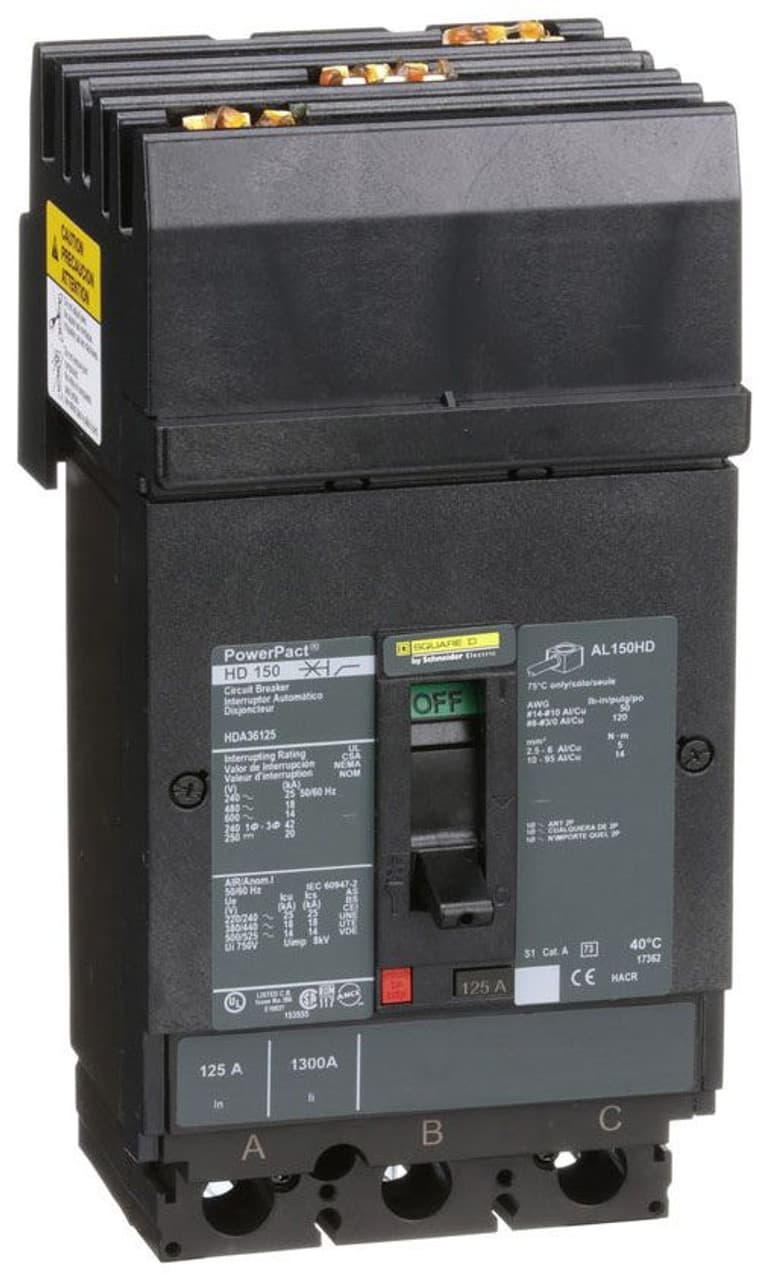

Square D by Schneider Electric HDA36125 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDA sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 125A and offers thermal protection for overload and magnetic protection for short-circuit scenarios. This MCCB has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It is designed for I-line connection (ABC phases) and mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. The device has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm, with a degree of protection rated at IP40. It operates manually via a toggle and has fixed protection settings for over-current at 125A, short-circuit hold current at 900A, and short-circuit trip current at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 125 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Breaking Capacity Code
    D
  • Height
    9.73 in (247.14 mm)
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Line Rated Current
    125 A
  • Width
    4.48 in (113.79 mm)
  • Magnetic Tripping Current
    1700 A
  • Depth
    4.8 in (121.92 mm)
  • Mounting Mode
    I-Line
  • Magnetic Hold Current
    900 A
  • Range Of Product
    PowerPact H
  • Phase Connection
    ABC
  • Number Of Poles
    3P
  • Shipping Weight:
    5.95 lbs.
  • Shipping Height:
    6.00 In.
  • Shipping Width:
    9.00 In.
  • TS PIK:
    127231032
  • UPC:
    78590141999
  • Shipping Length:
    15.00 In.
  • Electrical Connection
    I-Line connection line Lugs load

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDA36125 on Powermatic Associates is $2,730.00. Order now.
