Part#:HDL36050

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

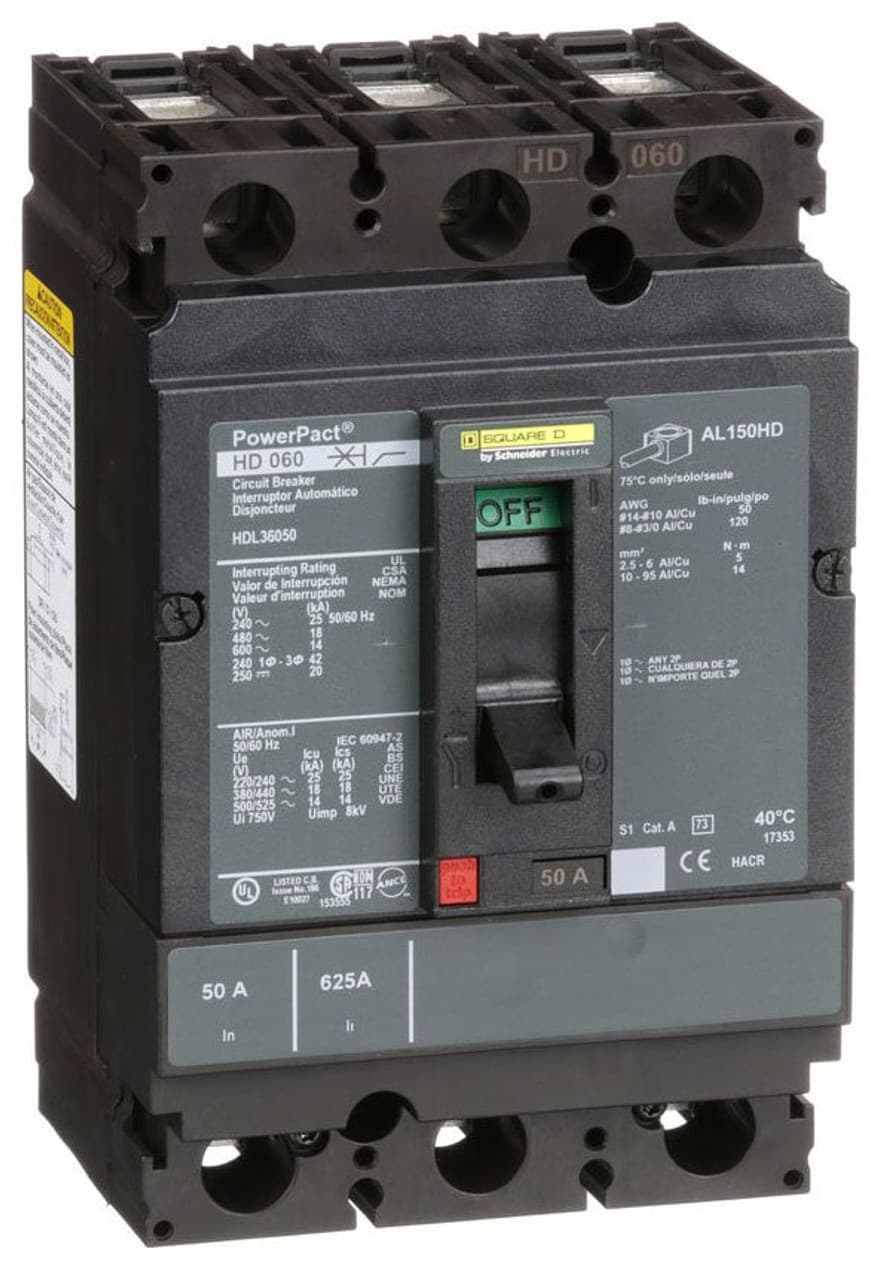

Square D by Schneider Electric HDL36050 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed with a PowerPact H-Frame 150 TMD, featuring 3 poles (3P) and a rated current of 50A. It operates at a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. This unit is equipped with thermal protection for overload scenarios and magnetic protection for short-circuit conditions. It supports a connection type of lugs on both load and line sides and is designed for individual unit mount on plate. The HDL36050 has a net height of 163 mm, a width of 104 mm, and a depth of 86 mm, offering a degree of protection of IP40. Its operating mode is manual toggle, with over-current protection settings fixed at 50A, short-circuit hold current fixed at 400A, and short-circuit trip current fixed at 850A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 50 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac under UL489, and 20kA at 250Vdc. The trip unit type is thermal-magnetic (fixed), without a display, and it falls under utilisation category A.

Product Details

  • Line Rated Current
    50 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    850 A
  • Continuous Current Rating
    80 %
  • Mounting Mode
    Unit mount
  • Range Of Product
    PowerPact H
  • Height
    6.4 in (162.56 mm)
  • Product Or Component Type
    Circuit breaker
  • Magnetic Hold Current
    400 A
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    D
  • Shipping Length:
    9.00 In.
  • TS PIK:
    21033022
  • UPC:
    78590170670
  • Shipping Height:
    6.00 In.
  • Shipping Width:
    8.00 In.
  • Shipping Weight:
    4.10 lbs.
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL36050 on Powermatic Associates is $1,088.00. Order now.
