HDL36100 Schneider Electric Industrial Automation Components

HDL36100 on Powermatic Associates
Schneider Electric

Part#:HDL36100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

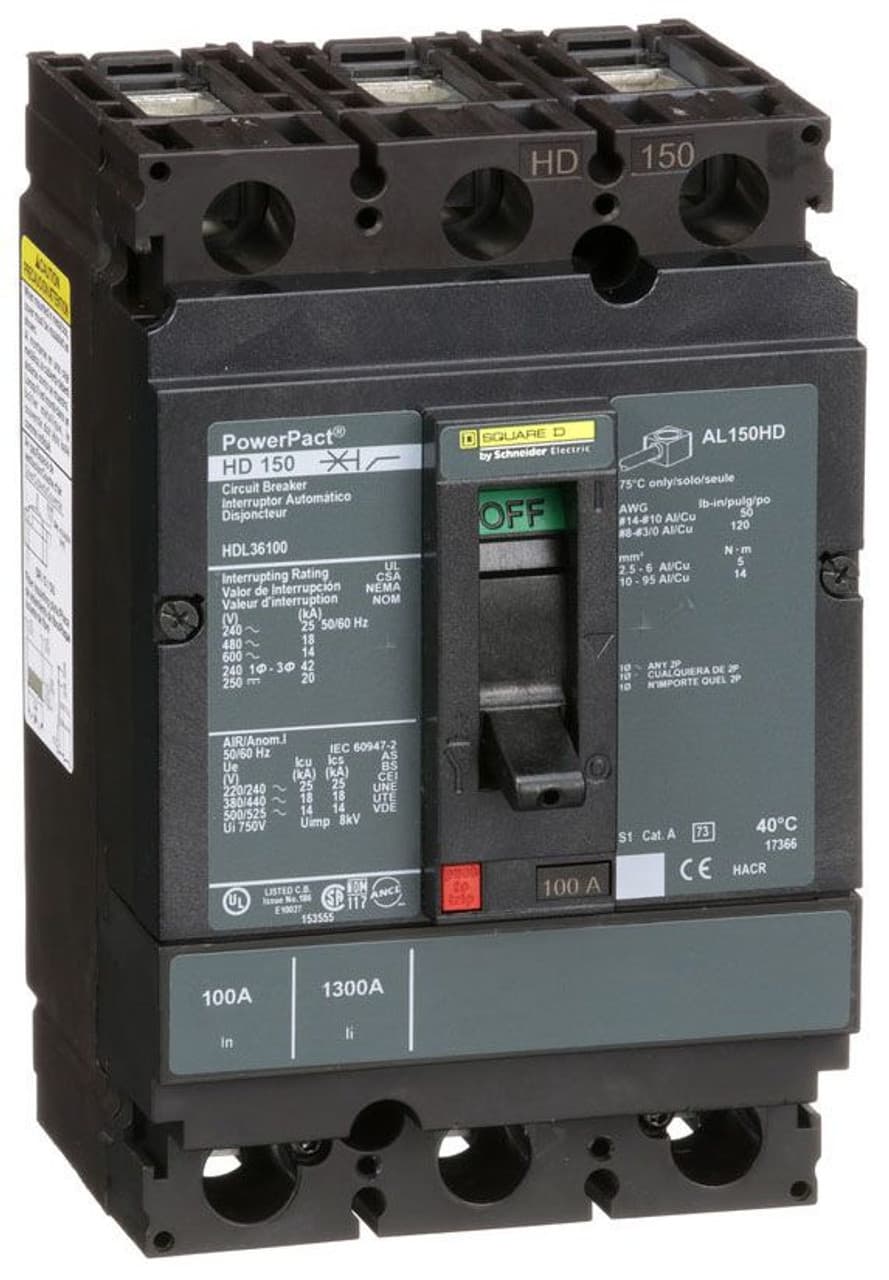

Square D by Schneider Electric HDL36100 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed as a PowerPact H-Frame 150 TMD 3P 100A 600Vac/250Vdc 14kA with lugs 80% rated. It features a connection type of lugs on both load and line sides and operates with 3 poles (3P). This MCCB offers thermal protection for overload and magnetic protection for short-circuit scenarios. It has a rated current of 100A, a rated insulation voltage (Ui) of 750 V, and operates at a rated voltage (AC) of 600Vac 600Y/347Vac. The unit is designed for individual unit mount on plate, with a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. It provides a degree of protection of IP40 and operates via a toggle (manual) mode. Protection settings include over-current fixed at 100A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. Its short circuit breaking rating includes 25kA at 240Vac, 18kA at 480Vac, 18kA at 480Y/277Vac, 14kA at 600Vac, 14kA at 600Y/347Vac, and 20kA at 250Vdc, all under UL489. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.

Product Details

  • Number Of Poles
    3P
  • Height
    6.4 in (162.56 mm)
  • Breaking Capacity Code
    D
  • Width
    4.12 in (104.65 mm)
  • Range Of Product
    PowerPact H
  • Depth
    4.36 in (110.74 mm)
  • Magnetic Tripping Current
    1700 A
  • Continuous Current Rating
    80 %
  • Line Rated Current
    100 A
  • Mounting Mode
    Unit mount
  • Magnetic Hold Current
    900 A
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Shipping Height:
    6.00 In.
  • Shipping Length:
    9.00 In.
  • UPC:
    78590183993
  • Shipping Width:
    8.00 In.
  • Shipping Weight:
    4.25 lbs.
  • TS PIK:
    127230779
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL36100 on Powermatic Associates is $1,328.00. Order now.

HDL36100 Related Documents

Product Datasheet-1631034217126.pdfInstruction Sheet-1631034217079.pdf
