Part#:HGL36060

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

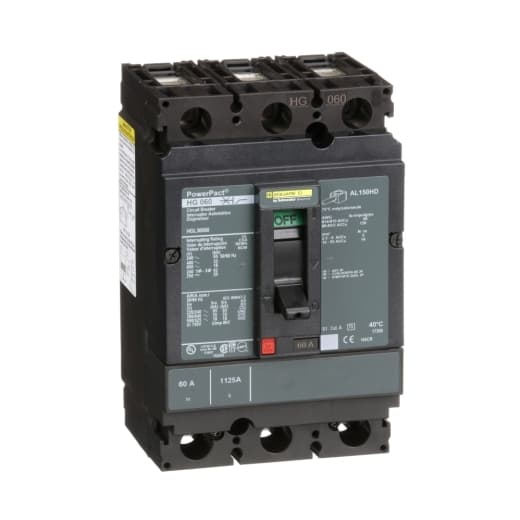

Square D by Schneider Electric HGL36060 is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT HGL sub-range, designed with a PowerPact H-Frame 150 TMD 3P 60A 600Vac/500Vdc 18kA with lugs 80% rated. It features a 3-pole (3P) configuration and offers both thermal protection (overload) and magnetic protection (short-circuit). The rated current is 60A, with a rated insulation voltage (Ui) of 750 V, and it operates at a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, with a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. It has an IP40 degree of protection and operates with a toggle (manual) mode. The protection settings include over-current fixed at 60A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 60 AT, with a frame current rating of 150 AF. Its short circuit breaking rating includes 65kA (240Vac; UL489), 35kA (480Vac; UL489), 35kA (480Y/277Vac; UL489), 18kA (600Vac; UL489), 18kA (600Y/347Vac; UL489), 20kA (250Vdc; UL489), and 20kA (500Vdc; UL489). The trip unit type is thermal-magnetic (fixed) with no display, and it falls under the utilisation category A. Connection type includes lugs on both load and line sides.

Product Details

  • Line Rated Current
    60 A
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Number Of Poles
    3P
  • Magnetic Tripping Current
    1450 A
  • Mounting Mode
    Unit mount
  • Depth
    4.36 in (110.74 mm)
  • Breaking Capacity Code
    G
  • Continuous Current Rating
    80 %
  • Magnetic Hold Current
    800 A
  • Product Or Component Type
    Circuit breaker
  • Width
    4.12 in (104.65 mm)
  • Range Of Product
    PowerPact H
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
