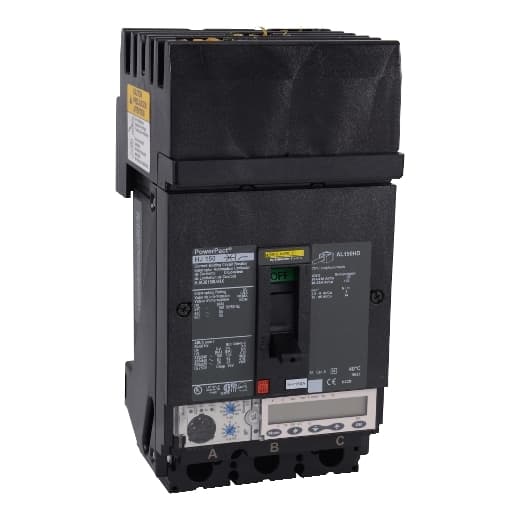

HJA36150U44X Schneider Electric Industrial Automation Components

HJA36150U44X on Powermatic Associates
Schneider Electric

Part#:HJA36150U44X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - HJA36150U44X

Product Details

  • Electrical Connection
    I-Line connection line Lugs load
  • Continuous Current Rating
    80 %
  • Depth
    4.8 in (121.92 mm)
  • Height
    9.73 in (247.14 mm)
  • Width
    4.48 in (113.79 mm)
  • Phase Connection
    ABC
  • Breaking Capacity Code
    J
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    I-Line
  • Range Of Product
    PowerPact H
  • Product Or Component Type
    Circuit breaker
  • Number Of Poles
    3P
  • Line Rated Current
    150 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJA36150U44X on Powermatic Associates is $7,213.00. Order now.
