HLA261001 Schneider Electric Industrial Automation Components

HLA261001 on Powermatic Associates
Schneider Electric

Part#:HLA261001

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

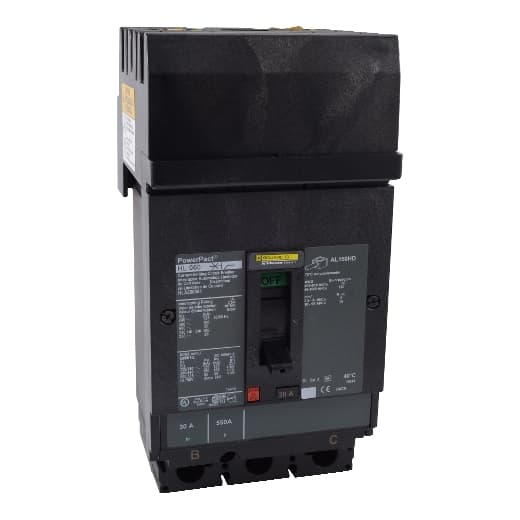

Schneider Electric - HLA261001

Product Details

  • Electrical Connection
    I-Line connection line Lugs load
  • Product Or Component Type
    Circuit breaker
  • Depth
    4.36 in (110.74 mm)
  • Continuous Current Rating
    80 %
  • Height
    9.73 in (247.14 mm)
  • Phase Connection
    AB
  • Magnetic Tripping Current
    1700 A
  • Mounting Mode
    I-Line
  • Width
    2.94 in (74.68 mm)
  • Breaking Capacity Code
    L
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Range Of Product
    PowerPact H
  • Magnetic Hold Current
    900 A
  • Number Of Poles
    2P
  • Line Rated Current
    100 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLA261001 on Powermatic Associates is $4,036.50. Order now.
