HOM2040L125PRB Schneider Electric Industrial Automation Components

HOM2040L125PRB on Powermatic Associates
Schneider Electric

Part#:HOM2040L125PRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

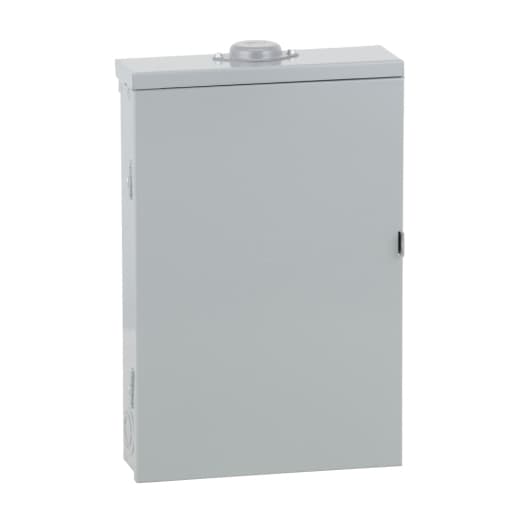

Square D by Schneider Electric HOM2040L125PRB is a load center designed for single-phase (1PH) networks. It features a welded galvannealed steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H560mm x W375mm x D115mm (H22.05" x W14.76" x D4.53"), offering 20 spaces for up to 40 single pole circuits or 20 tandem breakers. It is equipped with lugs for connection, supports a rated current of 125A, and operates at a rated voltage of 120Vac/240Vac. The HOM2040L125PRB is protected to a degree of NEMA 3R.

Product Details

  • Load Center Type
    Main lugs
  • Electrical Connection
    Lugs
  • Surface Finish
    Baked enamel Gray
  • Voltage Rating
    120/240 V AC
  • Height
    22.05 in (560 mm)
  • Number Of Spaces
    20
  • Enclosure Material
    Welded galvannealed steel
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Wiring Configuration
    3-wire
  • Enclosure Rating
    NEMA 3R outdoor
  • Max Short Circuit Current Rating
    10 kA
  • Width
    14.76 in (375 mm)
  • Maximum Number Of Single Pole Circuits
    40
  • Number Of Phases
    1 phase
  • Cover Type
    Surface cover
  • Rated Current
    125 A
  • Maximum Number Of Tandem Breakers
    20
  • Depth
    4.53 in (115 mm)
  • Busbar Material
    Tin plated aluminium busbar
  • Box Number
    4R
  • Marketing Trade Name
    Homeline
  • Wire Size
    AWG 6...AWG 2/0 aluminium AWG 6...AWG 1/0 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM2040L125PRB on Powermatic Associates is $413.64. Order now.
