HOM2040M100PC1AVP Schneider Electric Industrial Automation Components

HOM2040M100PC1AVP on Powermatic Associates
Schneider Electric

Part#:HOM2040M100PC1AVP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

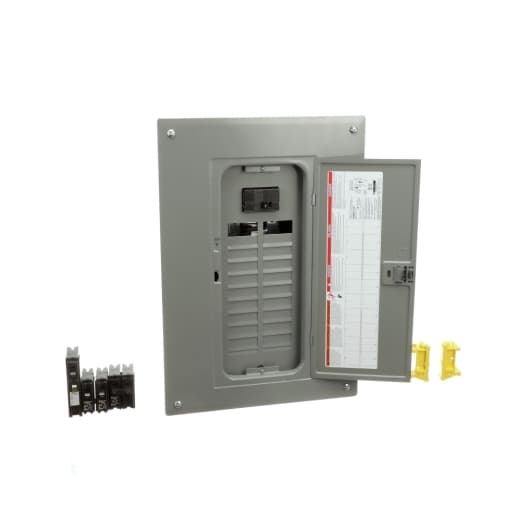

Square D by Schneider Electric HOM2040M100PC1AVP is a load center designed for single-phase (1PH) networks. It features a welded sheet steel enclosure and a tin-plated aluminum busbar. This load center has dimensions of H531mm x W362mm x D95mm (H20.91" x W14.25" x D3.74"), offering 20 spaces for up to 40 single pole circuits or 20 tandem breakers. It is equipped with lugs for connection, supports a rated current of 100A, and operates at a rated voltage of 120Vac/240Vac. The HOM2040M100PC1AVP is designed to meet NEMA 1 degree of protection standards.

Product Details

  • Load Center Type
    Main breaker
  • Maximum Number Of Tandem Breakers
    20
  • Box Number
    7
  • Rated Current
    100 A
  • Electrical Connection
    Lugs
  • Max Short Circuit Current Rating
    22 kA
  • Surface Finish
    Baked enamel Gray
  • Number Of Spaces
    20
  • Voltage Rating
    120/240 V AC
  • Width
    14.25 in (362 mm)
  • Product Type
    Load Center
  • Ground Bar
    Grounding bar (ordered separately)
  • Height
    20.91 in (531 mm)
  • Cover Type
    Combination flush/surface cover
  • Number Of Phases
    1 phase
  • Depth
    3.74 in (95 mm)
  • Enclosure Rating
    NEMA 1 indoor
  • Busbar Material
    Tin plated aluminium busbar
  • Marketing Trade Name
    Homeline
  • Enclosure Material
    Welded sheet steel
  • Maximum Number Of Single Pole Circuits
    40
  • Wiring Configuration
    3-wire
  • Wire Size
    AWG 6...AWG 1 aluminium AWG 6...AWG 3 copper
  • Provided Equipment
    Circuit-breaker 2) 1P 20 A 120/240 V AC Circuit-breaker 1) 2P 100 A 120/240 V AC main supply ready assembled Circuit-breaker 1) 2P 30 A 120/240 V AC Arc fault circuit breaker 1) 1P 15 A 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM2040M100PC1AVP on Powermatic Associates is $795.00. Order now.
