HOM220GFIC Schneider Electric Industrial Automation Components

HOM220GFIC on Powermatic Associates
Schneider Electric

Part#:HOM220GFIC

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

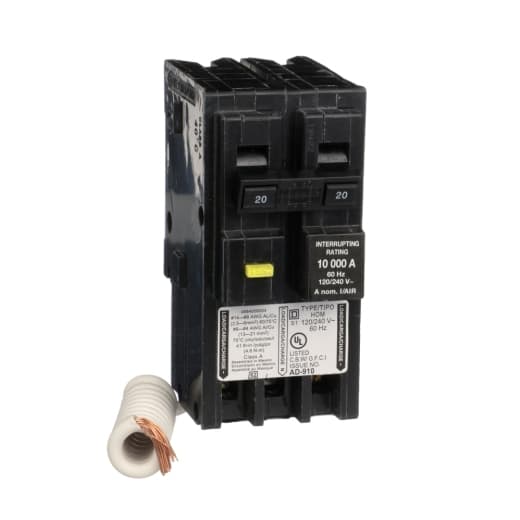

Square D by Schneider Electric HOM220GFIC is a Ground Fault Interrupter (GFI) Miniature Circuit Breaker (MCB) designed for plug-in connections. This 2-pole circuit breaker offers ground fault protection with a rated current of 20A and supports a rated voltage of 120V to 240V AC. It is engineered for plug-in mounting and accommodates a cross-section of 12-4AWG (1 cable Al). The HOM220GFIC features a residual current sensitivity of 6mA/0.006 and has a short circuit breaking rating of 10kA at 120Vac. Its terminals are of the screw clamp type, facilitating secure and reliable connections.

Product Details

  • Ratings
    HACR rated
  • Width
    2 in (50.80 mm)
  • Range
    Homeline
  • Type Of Packing
    Clam packaging
  • Number Of Poles
    2P
  • Depth
    2.98 in (75.69 mm)
  • Product
    Miniature circuit-breaker
  • Height
    3.13 in (79.50 mm)
  • Short Circuit Current Rating
    10 kA
  • Current Rating
    20 A
  • Electrical Connection
    Screw clamp terminals
  • Voltage Rating
    120/240 V AC
  • Mounting Type
    Plug-in
  • Number Of Spaces
    2
  • Circuit Breaker Type
    Ground fault protecting class A 6 mA
  • Certifications
    UL Listed
  • Tightening Torque
    40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) 40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
  • Wire Size
    AWG 12...AWG 4 aluminium)1 AWG 14...AWG 6 copper)1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM220GFIC on Powermatic Associates is $434.00. Order now.
