HOM816M100PRB Schneider Electric Industrial Automation Components

HOM816M100PRB on Powermatic Associates
Schneider Electric

Part#:HOM816M100PRB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

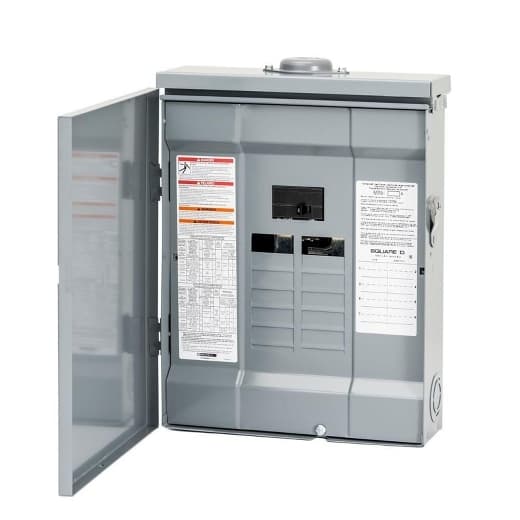

Square D by Schneider Electric HOM816M100PRB is a load center designed for single-phase (1PH) networks, featuring a welded galvannealed steel enclosure and a tin-plated aluminum busbar. It measures H481mm x W375mm x D115mm (H18.94" x W14.76" x D4.53") and offers 8 spaces for accommodating up to 16 single pole circuits or 8 tandem breakers. This load center is equipped with lugs for connection, operates at a rated current of 100A, and supports a rated voltage of 120Vac/240Vac. It is protected to a NEMA 3R degree, ensuring suitability for certain outdoor applications.

Product Details

  • Marketing Trade Name
    Homeline
  • Wiring Configuration
    3-wire
  • Enclosure Rating
    NEMA 3R outdoor
  • Max Short Circuit Current Rating
    22 kA
  • Box Number
    3R
  • Maximum Number Of Single Pole Circuits
    16
  • Ground Bar
    Grounding bar (ordered separately)
  • Height
    18.94 in (481 mm)
  • Cover Type
    Surface cover
  • Maximum Number Of Tandem Breakers
    8
  • Surface Finish
    Baked enamel Gray
  • Number Of Spaces
    8
  • Voltage Rating
    120/240 V AC
  • Enclosure Material
    Welded galvannealed steel
  • Product Type
    Load Center
  • Width
    14.76 in (375 mm)
  • Load Center Type
    Main breaker
  • Rated Current
    100 A
  • Number Of Phases
    1 phase
  • Depth
    4.53 in (115 mm)
  • Busbar Material
    Tin plated aluminium busbar
  • Provided Equipment
    Circuit-breaker 1) 2P 100 A 120/240 V AC main supply ready assembled
  • Electrical Connection
    Lugs
  • Wire Size
    AWG 6...AWG 2/0 aluminium AWG 6...AWG 1 copper

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM816M100PRB on Powermatic Associates is $429.00. Order now.
