HOMT220225 Schneider Electric Industrial Automation Components

HOMT220225 on Powermatic Associates
Schneider Electric

Part#:HOMT220225

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

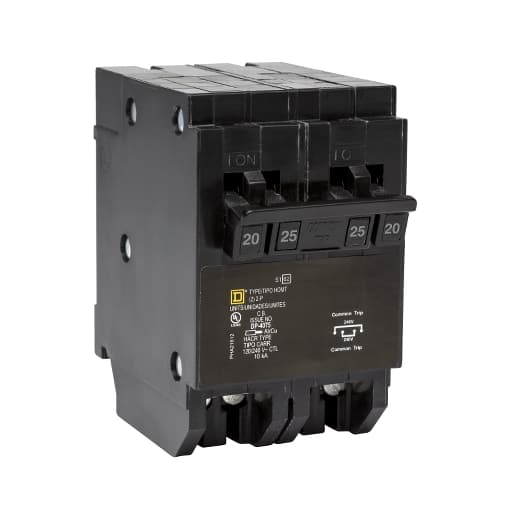

Schneider Electric - HOMT220225

Product Details

  • Voltage Rating
    120/240 V AC
  • Wire Size
    AWG 14...AWG 8 aluminium/copper)1
  • Number Of Spaces
    2.0
  • Product
    Miniature circuit-breaker
  • Tightening Torque
    35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
  • Circuit Breaker Type
    Quad tandem
  • Range
    Homeline
  • Number Of Poles
    2P
  • Depth
    3.23 in (82.04 mm)
  • Short Circuit Current Rating
    10 kA
  • Width
    1.97 in (50.04 mm)
  • Certifications
    UL Listed
  • Electrical Connection
    Box lugs
  • Ratings
    HACR rated
  • Mounting Type
    Plug-in
  • Height
    3.13 in (79.50 mm)
  • Current Rating
    20 A 25 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOMT220225 on Powermatic Associates is $195.00. Order now.
