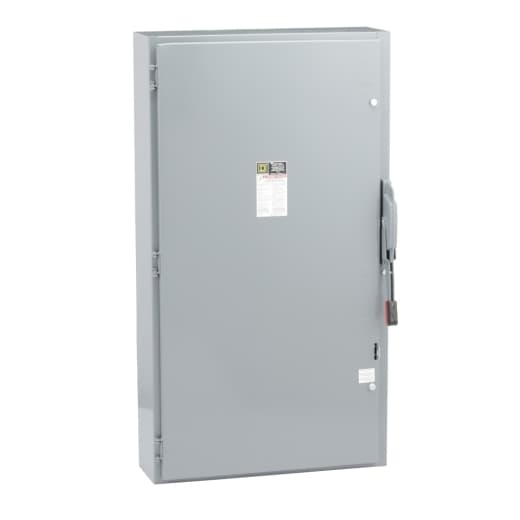

HU462AWK Schneider Electric Industrial Automation Components

Product Details

• Factory Installed Neutral
  None
• Enclosure Rating
  NEMA 3R/12 galvannealed steel
• Depth
  6.8 in (172.72 mm)
• Device Application
  Heavy application
• Mounting Type
  Surface
• Net Weight
  26.46 lb(US) (12 kg)
• Current Rating
  60 A
• Electrical Connection
  Lugs
• Phase
  3 phase
• Wiring Configuration
  4-wire
• Number Of Poles
  4
• Height
  20.5 in (520.70 mm)
• Product
  Single Throw Safety Switch
• Duty Rating
  Heavy duty
• Voltage Rating
  600 V AC/DC
• Disconnect Type
  Non-fusible disconnect
• Width
  16.13 in (409.70 mm)
• Wire Size
  AWG 14...AWG 3 copper AWG 12...AWG 3 aluminium
• Tightening Torque
  50 lbf.in (5.65 N.m) (AWG 3) 45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8) 50 lbf.in (5.65 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
• Maximum Horse Power Rating
  20 hp 240 V at AC 50-60 Hz for 2 phases conforming to NEC 430.52 20 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 40 hp 480 V at AC 50-60 Hz for 2 phases conforming to NEC 430.52 50 hp 480 V at AC 50-60 Hz for 3 phase conform
