HU464 Schneider Electric Industrial Automation Components

HU464 on Powermatic Associates
Schneider Electric

Part#:HU464

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

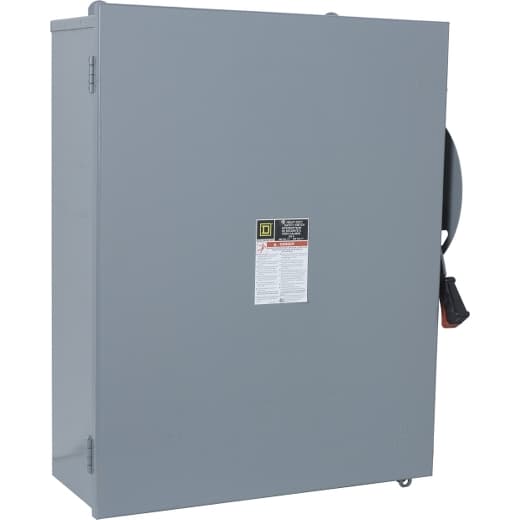

Schneider Electric - HU464

Product Details

  • Factory Installed Neutral
    None
  • Net Weight
    80.01 lb(US) (36.29 kg)
  • Voltage Rating
    600 V AC/DC
  • Height
    29 in (736.60 mm)
  • Product
    Single Throw Safety Switch
  • Enclosure Rating
    NEMA 1 steel
  • Width
    24.88 in (631.95 mm)
  • Phase
    3 phase
  • Current Rating
    200 A
  • Wire Size
    AWG 6...250 kcmil copper or aluminium
  • Depth
    8.75 in (222.25 mm)
  • Duty Rating
    Heavy duty
  • Tightening Torque
    275 lbf.in (31.07 N.m) 0.02…0.20 in² (13.3…127 mm²) (AWG 6...250 kcmil)
  • Number Of Poles
    4
  • Mounting Type
    Surface
  • Disconnect Type
    Non-fusible disconnect
  • Electrical Connection
    Lugs
  • Wiring Configuration
    4-wire
  • Device Application
    Heavy application
  • Maximum Horse Power Rating
    50 hp 240 V at AC 50-60 Hz for 2 phases conforming to NEC 430.52 60 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 480 V at AC 50-60 Hz for 2 phases conforming to NEC 430.52 125 hp 480 V at AC 50-60 Hz for 3 phase confor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU464 on Powermatic Associates is $2,399.00. Order now.
