ILA1F571TB1A0 Schneider Electric Industrial Automation Components

ILA1F571TB1A0 on Powermatic Associates
Schneider Electric

Part#:ILA1F571TB1A0

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

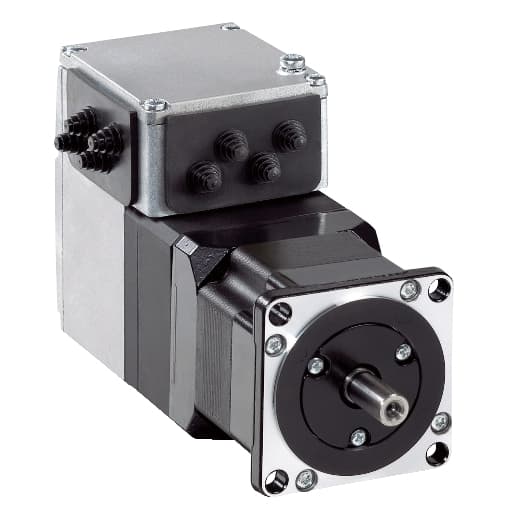

Schneider Electric ILA1F571TB1A0 is a DC servo motor within the Servo motors sub-range, featuring an integrated servo drive and DC motor. It is designed with a single-turn encoder (16384ppr), a smooth shaft, and a single motor stack optimized for high rotation speed and low torque. The connection type is a printed circuit board (P.C.B.) connector, and it supports the CANopen communication protocol. This motor includes protection functions such as Safe Torque OFF (STO). It operates on a supply voltage of 24Vdc to 36Vdc and is mounted via a 57x57mm flange. The dimensions are 92.2 mm in height, 57.2 mm in width, and 145.3 mm in depth. The nominal torque is 0.26Nm, with a maximum torque of 0.43Nm, and a moment of inertia of 0.1kg.cm^2. The rotational speed varies between 5100rpm at 24Vdc and 7500rpm at 36Vdc, with a stall torque of 0.43Nm.

Product Details

  • Second Shaft
    Without second shaft end
  • Range Of Product
    Lexium integrated drive
  • Length
    5.72 in (145.3 mm)
  • Centring Collar Depth
    0.06 in (1.6 mm)
  • Mounting Support
    Flange
  • Feedback Type
    Single turn encoder
  • Voltage State 0 Guaranteed
    -3...4.5 V
  • Speed Feedback Resolution
    16384 points/turn
  • Network Type
    DC
  • Winding Type
    High speed of rotation and medium torque
  • Centring Collar Diameter
    1.97 in (50 mm)
  • Supply Voltage Limits
    18…40 V
  • Discrete Output Voltage
    23...25 V
  • Maximum Radial Force Fr
    89 N
  • Number Of Motor Poles
    6
  • Gear Box Type
    Without
  • Mounting Holes Diameter
    0.20 in (5.2 mm)
  • Associated Fuse Rating
    10 A
  • Net Weight
    3.09 lb(US) (1.4 kg)
  • Type Of Cooling
    Natural convection
  • Phase
    Single phase
  • Nominal Torque
    2.30 lbf.in (0.26 N.m)
  • Shaft End
    Untapped
  • Voltage State 1 Guaranteed
    15...30 V
  • Marking
    CE
  • Shaft Length
    0.79 in (20 mm)
  • Accuracy Error
    +/- 0.05 °
  • Device Short Name
    ILA
  • Circle Diameter Of The Mounting Holes
    2.62 in (66.6 mm)
  • Transmission Rate
    50, 100, 125, 250, 500, 800 and 1000 kbauds
  • Number Of Motor Stacks
    1
  • Shaft Diameter
    0.35 in (9 mm)
  • Continuous Stall Torque
    2.30 lbf.in (0.26 N.m)
  • Communication Interface
    CANopen DS301, Integrated
  • Motor Type
    AC Synchronous Servo Motor
  • Holding Brake
    Without
  • Motor Flange Size
    2.24 in (57 mm)
  • Input/Output Type
    4 signals (each be used as input or output)
  • Peak Stall Torque
    3.81 lbf.in (0.43 N.m)
  • Rotor Inertia
    0.1 kg.cm²
  • Product Or Component Type
    Motion integrated drive
  • Electrical Connection
    Printed circuit board connector
  • Number Of Mounting Holes
    4
  • Service Life In Hours
    20000 h bearing
  • Current Consumption
    11000 mA peak 7500 mA maximum continuous
  • [Us] Rated Supply Voltage
    24 V 36 V
  • Nominal Speed
    5100 rpm 24 V 7500 rpm 36 V
  • Maximum Switching Current
    100 mA per output 200 mA total
  • Maximum Axial Force Fa
    104 N force pressure) 104 N tensile force)
  • Protection Type
    Short circuit of the output voltage Safe torque off Overload of output voltage
  • Discrete Input Current
    10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILA1F571TB1A0 on Powermatic Associates is $1,245.00. Order now.
