LC1D150BD Schneider Electric Industrial Automation Components

LC1D150BD on Powermatic Associates
Schneider Electric

Part#:LC1D150BD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

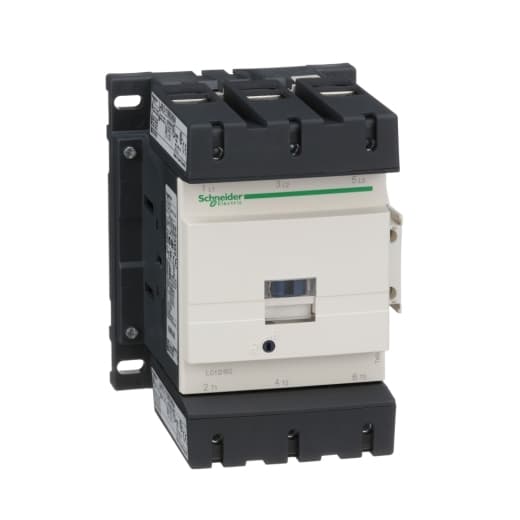

Schneider Electric LC1D150BD is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 200A for AC-1 and 150A for 440Vac in AC-3 conditions. This contactor is suitable for DIN rail mounting and has a net width of 120 mm. It offers a degree of protection rated at IP20 and operates with a control voltage (DC) range of 18-28.8Vdc, nominally at 24Vdc. The rated operating voltage (Ue) is up to 1000 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) stands at 8 kV. Its rated active power capacity spans from 40kW at 220-230Vac to 100kW at 660-690Vac in AC-3, with additional ratings for 75kW at 1000Vac in AC-3. It also features 1 normally closed (NC) auxiliary contact with contacts type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 40HP at 200-208Vac to 125HP at 575-600Vac for 3-phase, 50Hz/60Hz, UL/CSA conditions. The mechanical durability of the LC1D150BD is rated at 8 million operations at no load, and its electrical durability with load is rated at 850,000 operations. The rated voltage for phase-to-phase AC conditions is 1000 V.

Product Details

  • Product Name
    TeSys D
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV IEC 60947
  • Front Cover
    With
  • Signalling Circuit Frequency
    25...400 Hz
  • Poles Description
    3P
  • [Ith] Conventional Free Air Thermal Current
    200 A 140 °F (60 °C) power circuit
  • Inrush Power In W
    270…365 W 68 °F (20 °C))
  • Device Short Name
    LC1D
  • Control Circuit Type
    DC standard
  • Rated Breaking Capacity
    1400 A 440 V power circuit IEC 60947
  • Hold-In Power Consumption In W
    2.4…5.1 W 68 °F (20 °C)
  • Time Constant
    25 ms
  • Range
    TeSys
  • Overvoltage Category
    III
  • Coil Technology
    With integral suppression device
  • Minimum Switching Current
    5 mA signalling circuit
  • Power Pole Contact Composition
    3 NO
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Product Or Component Type
    Contactor
  • [Uc] Control Circuit Voltage
    24 V DC
  • Average Impedance
    0.6 mOhm - Ith 200 A 50 Hz power circuit
  • Maximum Operating Rate
    1200 cyc/h 140 °F (60 °C)
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Mechanical Durability
    8 Mcycles
  • Minimum Switching Voltage
    17 V signalling circuit
  • Mounting Support
    Rail Plate
  • Contactor Application
    Resistive load Motor control
  • [Ue] Rated Operational Voltage
    Power circuit <= 1000 V AC 25...400 Hz Power circuit <= 300 V DC
  • Operating Time
    20...35 ms closing 40...75 ms opening
  • Electrical Durability
    0.85 Mcycles 150 A AC-3 <= 440 V 1 Mcycles 200 A AC-1 <= 440 V
  • [Ie] Rated Operational Current
    200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 150 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
  • Power Dissipation Per Pole
    24 W AC-1 13.5 W AC-3
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²)fl
  • Utilisation Category
    AC-3 AC-4 AC-1
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1660 A 440 V power circuit IEC 60947
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm)
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 315 A gG <= 690 V type 1 power circuit 250 A gG <= 690 V type 2 power circuit
  • Control Circuit Voltage Limits
    0.75...1.2 Uc -40…131 °F (-40…55 °C) operational DC 0.15...0.4 Uc -40…158 °F (-40…70 °C) drop-out DC 1...1.2 Uc 131…158 °F (55…70 °C) operational DC
  • Motor Power HP (UL / CSA)
    40 hp 200/208 V at AC 50/60 Hz for 3 phase 50 hp 230/240 V at AC 50/60 Hz for 3 phase 100 hp 460/480 V at AC 50/60 Hz for 3 phase 125 hp 575/600 V at AC 50/60 Hz for 3 phase
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • [Icw] Rated Short-Time Withstand Current
    250 A 104 °F (40 °C) - 10 min power circuit 580 A 104 °F (40 °C) - 1 min power circuit 1200 A 104 °F (40 °C) - 10 s power circuit 1400 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling c
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Product Certifications
    UL BV GL GOST CSA CCC LROS (Lloyds register of shipping) RINA DNV UKCA
  • Motor Power Kw
    40 kW 220...230 V AC 50/60 Hz AC-3) 75 kW 380...400 V AC 50/60 Hz AC-3) 80 kW 415...440 V AC 50/60 Hz AC-3) 90 kW 500 V AC 50/60 Hz AC-3) 100 kW 660...690 V AC 50/60 Hz AC-3) 75 kW 1000 V AC 50/60 Hz AC-3) 22 kW 400 V AC 50/6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D150BD on Powermatic Associates is $902.65. Order now.
