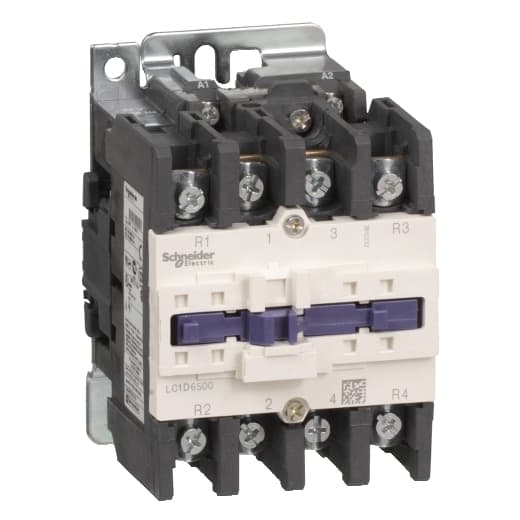

LC1D65008B7 Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Contactor
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Utilisation Category
  AC-1
• Product Name
  TeSys D
• Overvoltage Category
  III
• Electrical Durability
  1.4 Mcycles 80 A AC-1 <= 440 V
• Poles Description
  4P
• Control Circuit Type
  AC at 50/60 Hz
• Power Dissipation Per Pole
  9.6 W AC-1
• Coil Technology
  Without built-in suppressor module
• Power Pole Contact Composition
  2 NO + 2 NC
• Irms Rated Making Capacity
  1000 A 440 V power circuit IEC 60947
• Mechanical Durability
  6 Mcycles
• [Ith] Conventional Free Air Thermal Current
  80 A 140 °F (60 °C) power circuit
• Front Cover
  Without
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Contactor Application
  Resistive load
• Rated Breaking Capacity
  1000 A 440 V power circuit IEC 60947
• Device Short Name
  LC1D
• [Ie] Rated Operational Current
  80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
Range
TeSys
[Uc] Control Circuit Voltage
24 V AC 50/60 Hz
Average Impedance
1.5 mOhm - Ith 80 A 50 Hz power circuit
Heat Dissipation
4…5 W 50/60 Hz
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Operating Time
4...19 ms opening 12...26 ms closing
[Ue] Rated Operational Voltage
Power circuit: <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
Inrush Power In VA
140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
Mounting Support
Plate Rail
Associated Fuse Rating
125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
Hold-In Power Consumption In VA
13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
Connections - Terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
[Ui] Rated Insulation Voltage
Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Control Circuit Voltage Limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
[Icw] Rated Short-Time Withstand Current
520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Product Certifications
CSA GL UL BV CCC DNV LROS (Lloyds register of shipping) GOST RINA
