LC1D183BD Schneider Electric Industrial Automation Components

LC1D183BD on Powermatic Associates
Schneider Electric

Part#:LC1D183BD

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

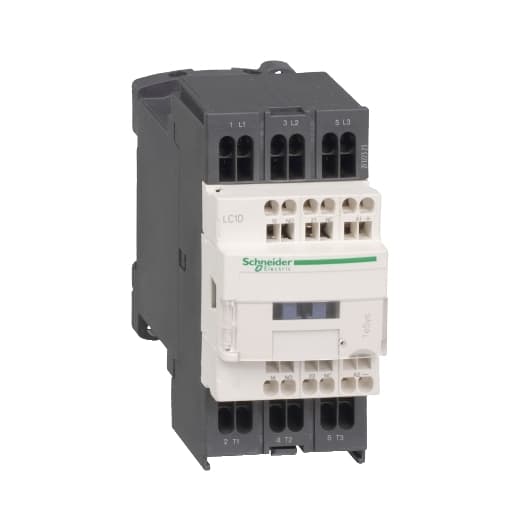

Schneider Electric LC1D183BD is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3P; 3NO). It has a rated current of 25A (AC-1) and 18A (440Vac; AC-3), with a mounting mode suitable for DIN rail installation. The net width of the contactor is 45 mm, and it offers a degree of protection rated at IP20. The control voltage (DC) ranges from 18-30Vdc (24Vdc nom.; 0.75...1.25 x Uc), and the rated operating voltage (Ue) is up to 690 V. It includes 1 normally open (NO) auxiliary contact and 1 normally closed (NC) auxiliary contact, both of the instantaneous type (1NO+1NC). The rated impulse voltage (Uimp) is 6 kV. This contactor supports rated active power ranging from 4kW at 220-230Vac to 10kW at 660-690Vac in AC-3 category. The rated power (HP) varies from 1HP at 115Vac in single-phase to 15HP at 575-600Vac in three-phase, under UL/CSA standards. It boasts a mechanical durability of 15 million operations and an electrical durability of 1.6 million operations with load, at a phase-to-phase rated voltage of 690 V.

Product Details

  • Product Name
    TeSys D
  • Power Pole Contact Composition
    3 NO
  • Hold-In Power Consumption In W
    5.4 W 68 °F (20 °C)
  • Range
    TeSys
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Front Cover
    With
  • Inrush Power In W
    5.4 W 68 °F (20 °C))
  • Maximum Operating Rate
    3600 cyc/h 60 °C
  • Device Short Name
    LC1D
  • Overvoltage Category
    III
  • Minimum Switching Current
    5 mA signalling circuit
  • Product Or Component Type
    Contactor
  • Control Circuit Type
    DC standard
  • Minimum Switching Voltage
    17 V signalling circuit
  • Time Constant
    28 ms
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Mechanical Durability
    30 Mcycles
  • Rated Breaking Capacity
    300 A 440 V power circuit IEC 60947
  • Coil Technology
    With integral suppression device
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Poles Description
    3P
  • [Uc] Control Circuit Voltage
    24 V DC
  • Average Impedance
    2.5 mOhm - Ith 25 A 50 Hz power circuit
  • Signalling Circuit Frequency
    25...400 Hz
  • Mounting Support
    Plate Rail
  • [Ith] Conventional Free Air Thermal Current
    25 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Operating Time
    53.55...72.45 ms closing 16...24 ms opening
  • Electrical Durability
    1.65 Mcycles 18 A AC-3 <= 440 V 1 Mcycles 32 A AC-1 <= 440 V
  • [Ie] Rated Operational Current
    18 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 32 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • Power Dissipation Per Pole
    2.5 W AC-1 0.8 W AC-3
  • [Ue] Rated Operational Voltage
    Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC
  • Contactor Application
    Resistive load Motor control
  • Auxiliary Contacts Type
    type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
  • Utilisation Category
    AC-4 AC-1 AC-3
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 50 A gG <= 690 V type 1 power circuit 35 A gG <= 690 V type 2 power circuit
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 300 A 440 V power circuit IEC 60947
  • Control Circuit Voltage Limits
    0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC 0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring terminals 1 0.01 in² (4 mm²)flexible without cable end Powe
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Motor Power Kw
    4 kW 220...230 V AC 50/60 Hz AC-3) 7.5 kW 380...400 V AC 50/60 Hz AC-3) 9 kW 415...440 V AC 50/60 Hz AC-3) 10 kW 500 V AC 50/60 Hz AC-3) 10 kW 660...690 V AC 50/60 Hz AC-3) 4 kW 400 V AC 50/60 Hz AC-4)
  • [Icw] Rated Short-Time Withstand Current
    145 A 104 °F (40 °C) - 10 s power circuit 240 A 104 °F (40 °C) - 1 s power circuit 40 A 104 °F (40 °C) - 10 min power circuit 84 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circu
  • Motor Power HP (UL / CSA)
    1 hp 115 V at AC 50/60 Hz for 1 phase 3 hp 230/240 V at AC 50/60 Hz for 1 phase 5 hp 200/208 V at AC 50/60 Hz for 3 phase 5 hp 230/240 V at AC 50/60 Hz for 3 phase 10 hp 460/480 V at AC 50/60 Hz for 3 phase 15 hp 575/600 V at AC 5
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • Product Certifications
    LROS (Lloyds register of shipping) GL UL DNV RINA CCC CSA GOST BV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D183BD on Powermatic Associates is $203.05. Order now.
