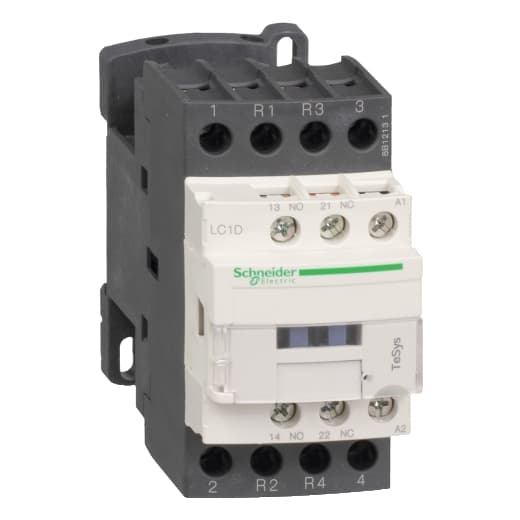

LC1D188G7 Schneider Electric Industrial Automation Components

Product Details

• Utilisation Category
  AC-1
• Rated Breaking Capacity
  300 A 440 V power circuit IEC 60947
• Front Cover
  With
• Contactor Application
  Resistive load
• Average Impedance
  2.5 mOhm - Ith 32 A 50 Hz power circuit
• Maximum Operating Rate
  3600 cyc/h 140 °F (60 °C)
• Minimum Switching Voltage
  17 V signalling circuit
• Power Pole Contact Composition
  2 NO + 2 NC
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Minimum Switching Current
  5 mA signalling circuit
• Product Or Component Type
  Contactor
• Auxiliary Contact Composition
  1 NO + 1 NC
• Poles Description
  4P
• Power Dissipation Per Pole
  2.5 W AC-1
• Range
  TeSys
• Overvoltage Category
  III
• Signalling Circuit Frequency
  25...400 Hz
• Mechanical Durability
  15 Mcycles
• Product Name
  TeSys D
• [Ie] Rated Operational Current
  32 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
Device Short Name
LC1D
[Uc] Control Circuit Voltage
120 V AC 50/60 Hz
Coil Technology
Without built-in suppressor module
Insulation Resistance
> 10 MOhm signalling circuit
Electrical Durability
1 Mcycles 32 A AC-1 <= 440 V
Control Circuit Type
AC 50/60 Hz
Heat Dissipation
2…3 W 50/60 Hz
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mounting Support
Rail Plate
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Inrush Power In VA
70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 32 A 140 °F (60 °C) power circuit
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
Hold-In Power Consumption In VA
7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
Operating Time
12...22 ms closing 4...19 ms opening
Connections - Terminals
Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 300 A 440 V power circuit IEC 60947
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 50 A gG <= 690 V type 1 power circuit 35 A gG <= 690 V type 2 power circuit
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 15.05 lbf.in (1.7 N.m) connector flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.
Control Circuit Voltage Limits
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
[Icw] Rated Short-Time Withstand Current
145 A 104 °F (40 °C) - 10 s power circuit 240 A 104 °F (40 °C) - 1 s power circuit 40 A 104 °F (40 °C) - 10 min power circuit 84 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circu
[Ui] Rated Insulation Voltage
Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
Product Certifications
LROS (Lloyds register of shipping) GL RINA DNV CSA GOST BV UL CCC
