Part#:LC1D65008F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

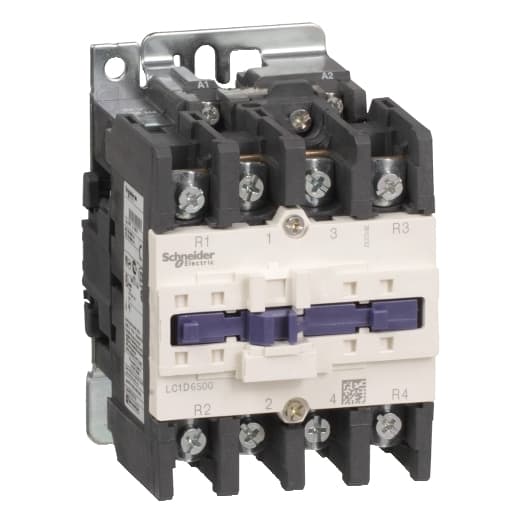

Schneider Electric LC1D65008F7 is a magnetic contactor from the Deca sub-range, featuring screw connections and designed with 4 poles (2NO+2NC). It has a rated current of 80A (AC-1) and is suitable for DIN rail mounting. The net width of the contactor is 85 mm, and it offers a degree of protection rated at IP20. The control voltage (AC) ranges from 88-121Vac at 50Hz and 93.5-121Vac at 60Hz, with a nominal voltage of 110Vac. The rated operating voltage (Ue) is 690 V, and it comes with 0 normally open (NO) auxiliary contacts and 0 normally closed (NC) auxiliary contacts. The rated impulse voltage (Uimp) is 6 kV, and it boasts a mechanical durability of 15,000,000 operations at no load. The rated voltage (AC) for phase-to-phase connections is also 690 V.

Product Details

  • Overvoltage Category
    III
  • Contactor Application
    Resistive load
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Device Short Name
    LC1D
  • Range
    TeSys
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Coil Technology
    Without built-in suppressor module
  • Utilisation Category
    AC-1
  • [Ith] Conventional Free Air Thermal Current
    80 A 140 °F (60 °C) power circuit
  • Control Circuit Type
    AC at 50/60 Hz
  • Mechanical Durability
    6 Mcycles
  • Electrical Durability
    1.4 Mcycles 80 A AC-1 <= 440 V
  • Product Name
    TeSys D
  • Rated Breaking Capacity
    1000 A 440 V power circuit IEC 60947
  • Front Cover
    Without
  • [Ie] Rated Operational Current
    80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • Irms Rated Making Capacity
    1000 A 440 V power circuit IEC 60947
  • Average Impedance
    1.5 mOhm - Ith 80 A 50 Hz power circuit
  • Heat Dissipation
    4…5 W 50/60 Hz
  • Product Or Component Type
    Contactor
  • Poles Description
    4P
  • Power Pole Contact Composition
    2 NO + 2 NC
  • [Uc] Control Circuit Voltage
    110 V AC 50/60 Hz
  • Power Dissipation Per Pole
    9.6 W AC-1
  • Mounting Support
    Rail Plate
  • Operating Time
    4...19 ms opening 12...26 ms closing
  • Associated Fuse Rating
    125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
  • Hold-In Power Consumption In VA
    13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
  • Inrush Power In VA
    140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • [Ue] Rated Operational Voltage
    Power circuit: <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
  • Connections - Terminals
    Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • [Icw] Rated Short-Time Withstand Current
    520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Product Certifications
    UL CCC GL LROS (Lloyds register of shipping) GOST CSA RINA BV DNV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D65008F7 on Powermatic Associates is $741.31. Order now.
