LC1F1250F7 Schneider Electric Industrial Automation Components

LC1F1250F7 on Powermatic Associates
Schneider Electric

Part#:LC1F1250F7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

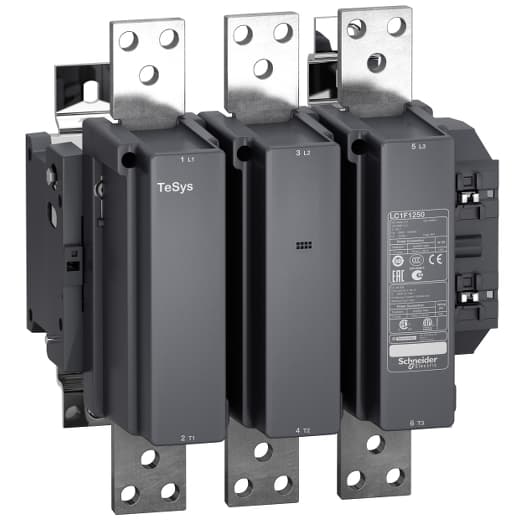

Schneider Electric LC1F1250F7 is a high-power magnetic contactor within the F sub-range, designed for surface mounting. It features a 3-pole (3P; 3NO) configuration with ring-lugs/bar connections for the main circuit. This contactor is rated for a current of 1260A under AC-1 conditions and operates at a control voltage of 94-121Vac (110Vac nominal; 40-400Hz; 0.85...1.1 x Uc). The rated operating voltage (Ue) is 1000 V, and it has a rated impulse voltage (Uimp) of 8 kV. It comes without normally open (NO) or normally closed (NC) auxiliary contacts. The mechanical durability of the LC1F1250F7, at no load, is rated at 1,000,000 operations, and it supports a phase-to-phase rated voltage (AC) of 1000 V.

Product Details

  • [Uc] Control Circuit Voltage
    110 V AC 40...400 Hz
  • Overvoltage Category
    III
  • Power Dissipation Per Pole
    120 W AC-1
  • Maximum Operating Rate
    1200 cyc/h 131 °F (55 °C)
  • Poles Description
    3P
  • Contactor Application
    Resistive load
  • Product Or Component Type
    Contactor
  • Product Name
    TeSys F
  • Range
    TeSys
  • Utilisation Category
    AC-1
  • Power Pole Contact Composition
    3 NO
  • [Ie] Rated Operational Current
    1260 A 104 °F (40 °C)) <= 440 V AC-1
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV
  • Rated Breaking Capacity
    1890 A IEC 60947-4-1
  • Associated Fuse Rating
    1000 A gG <= 440 V
  • Device Short Name
    LC1F
  • [Ith] Conventional Free Air Thermal Current
    1260 A 104 °F (40 °C)
  • Mounting Support
    Plate
  • Heat Dissipation
    20 W
  • Average Impedance
    0.12 mOhm - Ith 1260 A 50 Hz
  • Hold-In Power Consumption In VA
    22 VA 40...400 Hz 0.9 68 °F (20 °C))
  • Inrush Power In VA
    1650 VA 40...400 Hz 0.9 68 °F (20 °C))
  • Compatibility Code
    LC1F
  • [Ue] Rated Operational Voltage
    <= 460 V DC <= 690 V AC 50/60 Hz
  • Tightening Torque
    Control circuit 10.62 lbf.in (1.2 N.m) Power circuit 513.34 lbf.in (58 N.m)
  • Operating Time
    40...80 ms closing 100...200 ms opening
  • [Ui] Rated Insulation Voltage
    1000 V IEC 60947-4-1 1500 V VDE 0110 group C
  • Control Circuit Voltage Limits
    Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C)) Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C))
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Product Certifications
    CCC CB CETLus CSA UKCA
  • [Icw] Rated Short-Time Withstand Current
    3000 A 104 °F (40 °C) - 3 min 8000 A 104 °F (40 °C) - 10 s 5200 A 104 °F (40 °C) - 30 s 4000 A 104 °F (40 °C) - 1 min 2000 A 104 °F (40 °C) - 10 min
  • Standards
    EN 60947-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 EN 60947-4-1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1F1250F7 on Powermatic Associates is $8,439.76. Order now.

LC1F1250F7 Related Documents

Product Datasheet-1631038422264.pdfCatalog-1631038422267.pdfInstruction Sheet-1631038422286.pdf
