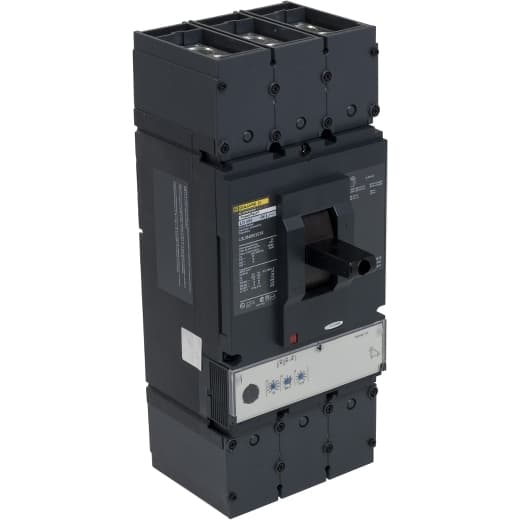

LLL36400U54X Schneider Electric Industrial Automation Components

LLL36400U54X on Powermatic Associates
Schneider Electric

Part#:LLL36400U54X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - LLL36400U54X

Product Details

  • Height
    11.3 in (287.02 mm)
  • Depth
    6.61 in (167.89 mm)
  • Product Or Component Type
    Circuit breaker
  • Width
    5.51 in (139.95 mm)
  • Continuous Current Rating
    80 %
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)
  • Breaking Capacity Code
    L
  • Terminal Identifier
    AL600LS52K3
  • Number Of Poles
    3P
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

LLL36400U54X Related Documents

Instruction Sheet-1631038363740.pdfProduct Datasheet-1631038363746.pdf
