LP4K0610EW3 Schneider Electric Industrial Automation Components

LP4K0610EW3 on Powermatic Associates
Schneider Electric

Part#:LP4K0610EW3

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

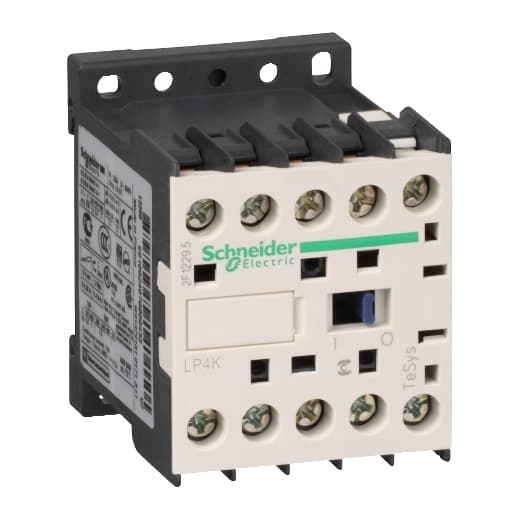

Schneider Electric LP4K0610EW3 is a magnetic contactor within the K sub-range, featuring screw connections and designed with 3 poles (3P; 3NO). It has a rated current of 6A at 440Vac in AC-3 utilization category and offers a degree of protection of IP20. The control voltage (DC) ranges from 33.6 to 62.4Vdc, with a nominal value of 48Vdc (0.7...1.3 x Uc). Its rated operating voltage (Ue) reaches up to 690 V. This contactor includes 1 Normally Open (NO) auxiliary contact but does not have Normally Closed (NC) auxiliary contacts. It is capable of handling rated active power of 1.5kW at 220-230Vac, 2.2kW at 380-415Vac, and 3kW at 440Vac, 500Vac, and 660-690Vac, all in AC-3. The mechanical durability of the LP4K0610EW3 is rated at 30 million operations at no load, with a phase-to-phase rated voltage (AC) of 690 V and a power consumption of 1.8 W.

Product Details

  • Contactor Application
    Motor control
  • Inrush Power In W
    1.8 W 68 °F (20 °C))
  • Width
    1.77 in (45 mm)
  • [Ie] Rated Operational Current
    6 A<= 440 V AC AC-3 power circuit
  • Overvoltage Category
    III
  • Average Impedance
    3 mOhm - Ith 20 A 50 Hz power circuit
  • Depth
    2.24 in (57 mm)
  • Poles Description
    3P
  • Coil Technology
    Built-in bidirectional peak limiting diode suppressor
  • Net Weight
    0.52 lb(US) (0.235 kg)
  • Mechanical Durability
    30 Mcycles
  • Device Short Name
    LP4K
  • Auxiliary Contacts Type
    Instantaneous 1 NO
  • Minimum Switching Current
    5 mA signalling circuit
  • Product Or Component Type
    Contactor
  • [Uimp] Rated Impulse Withstand Voltage
    8 kV
  • Minimum Switching Voltage
    17 V signalling circuit
  • Pole Contact Composition
    3 NO
  • Range
    TeSys
  • Auxiliary Contact Composition
    1 NO
  • Height
    2.28 in (58 mm)
  • Hold-In Power Consumption In W
    1.8 W 68 °F (20 °C)
  • Insulation Resistance
    > 10 MOhm for signalling circuit
  • Range Of Product
    TeSys K
  • Maximum Operating Rate
    3600 cyc/h
  • Control Circuit Voltage Limits
    Operational 0.7...1.30 Uc 122 °F (50 °C)) Drop-out 0.1...0.7 Uc 122 °F (50 °C))
  • [Ue] Rated Operational Voltage
    Power circuit 690 V AC 50/60 Hz Signalling circuit <= 690 V AC 50/60 Hz
  • Associated Fuse Rating
    25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Utilisation Category
    AC-3 AC-4
  • Mounting Support
    Plate Rail
  • [Ith] Conventional Free Air Thermal Current
    20 A 122 °F (50 °C) power circuit 10 A 122 °F (50 °C) signalling circuit
  • Tightening Torque
    11.51 lbf.in (1.3 N.m) screw clamp terminals Philips No 2 11.51 lbf.in (1.3 N.m) screw clamp terminals flat Ø 6 mm
  • Operating Time
    10...20 ms coil de-energisation and NO opening 30...40 ms coil energisation and NO closing
  • Irms Rated Making Capacity
    110 A AC power circuit NF C 63-110 110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
  • Flame Retardance
    V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102
  • Rated Breaking Capacity
    110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 70 A 660...690 V IEC 60947
  • [Ui] Rated Insulation Voltage
    Power circuit 600 V UL 508 Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-5-1 Signalling circuit 600 V UL 508 Power circuit 600 V CSA C22.2 No 14 Signalling circuit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LP4K0610EW3 on Powermatic Associates is $89.30. Order now.
