LV426913 Schneider Electric Industrial Automation Components

Name: LV426913
Brand: Schneider Electric
Price: 217 USD
Availability: BackOrder

Part#:LV426913

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

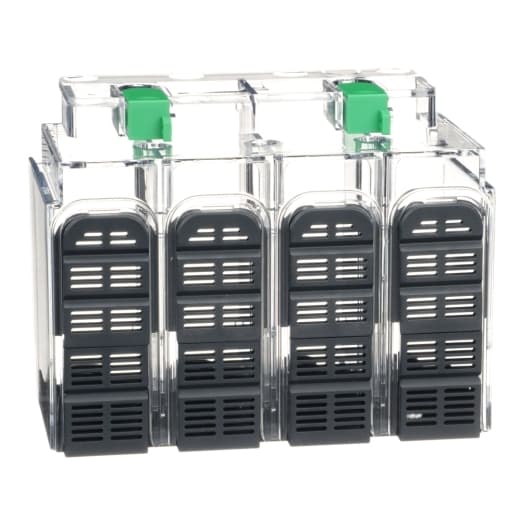

Schneider Electric LV426913 is a long terminal shroud/cover designed specifically for use with 4-pole (4P) devices.

Product Details

Accessory / Separate Part Type
Insulation accessories
Quantity Per Set
Set of 1
Product Or Component Type
Long terminal shield
Connection Pitch
1.38 in (35 mm)
IP Degree Of Protection
IP40 conforming to IEC 60529
Poles Description
4P
Range Compatibility
ComPact NSXm , PowerPact B
Location Of Connection
Upstream , Downstream

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LV426913 on Powermatic Associates is $217.00. Order now.
