Schneider Electric

Part#:LV426941

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

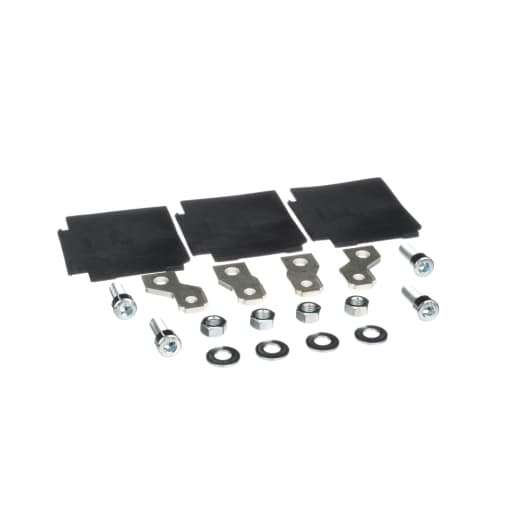

Schneider Electric LV426941 is a connector designed specifically for 4-poles devices, featuring a spreader function of 27/35mm.

Product Details

  • Conductor Material
    Copper
  • Accessory / Separate Part Type
    Connection accessories
  • Connection Pitch
    1.38 in (35 mm)
  • Provided Equipment
    Interphase barriers
  • Poles Description
    4P
  • Line Rated Current
    160 A
  • Quantity Per Set
    Set of 1
  • Mounting Mode
    Fixed
  • Product Or Component Type
    Spreader
  • Range Compatibility
    PowerPact B ComPact NSXm
  • Location Of Connection
    Upstream Downstream
  • Tightening Torque
    79.66 lbf.in (9 N.m) upstream 79.66 lbf.in (9 N.m) downstream
  • Connections - Terminals
    Crimp lug upstream) Crimp lug downstream)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LV426941 on Powermatic Associates is $365.00. Order now.

LV426941 Related Documents

Instruction Sheet-1631038385093.pdfProduct Datasheet-1631038385090.pdfCatalog-1631038385099.pdf
