M9F17206 Schneider Electric Industrial Automation Components
Part#:M9F17206
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

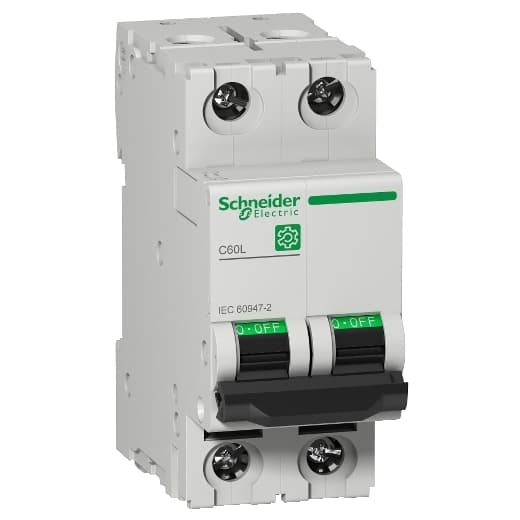

Schneider Electric M9F17206 is a Miniature Circuit Breaker (MCB) within the C60L sub-range, designed with 2 poles and a rated current of 6A. It features a rated insulation voltage (Ui) of 500V, a rated voltage for DC applications at 125Vdc, and a rated operating voltage (Ue) of 440V. The MCB is equipped to handle a rated impulse voltage (Uimp) of 6kV and offers protection for both poles. It operates with a tripping curve C, ensuring precise protection for electrical circuits.
Product Details
- Limitation Class 3
- Width 1.42 in (36 mm)
- Earth-Leakage Protection Separate block
- Curve Code C
- Local Signalling ON/OFF indication
- Provision For Padlocking Padlockable
- Network Type AC DC
- Product Or Component Type Miniature circuit-breaker
- 9 Mm Pitches 4
- Tightening Torque 17.70 lbf.in (2 N.m) top or bottom
- Line Rated Current 6 A 122 °F (50 °C) EN/IEC 60947-2
- Device Short Name C60L
- Product Name Multi 9 C60
- Poles Description 2P
- Mounting Mode Clip-on
- Range Multi 9
- Depth 2.83 in (72 mm)
- Network Frequency 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Net Weight 0.53 lb(US) (0.24 kg)
- Contact Position Indicator Yes
- Color Gray
- Trip Unit Technology Thermal-magnetic
- [Ui] Rated Insulation Voltage 500 V AC 50/60 Hz EN/IEC 60947-2
- Height 3.19 in (81 mm)
- Standards EN/IEC 60947-2
- Device Application Distribution
- Control Type Toggle
- Electrical Durability 10000 cycles
- Suitability For Isolation Yes EN/IEC 60947-2
- Mechanical Durability 20000 cycles
- Mounting Support DIN rail
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Number Of Protected Poles 2
- Utilisation Category Category A EN/IEC 60947-2
- Magnetic Tripping Limit 8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
- Product Certifications EAC CCC
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz between phases 415 V AC 50/60 Hz between phases 440 V AC 50/60 Hz between phases <= 125 V DC
- [Ics] Rated Service Breaking Capacity 25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
- Breaking Capacity 50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2 30 kA Icu <= 125 V DC 50/60 Hz EN/IEC 60947-2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F17206 on Powermatic Associates is $332.00. Order now.
