M9F43204 Schneider Electric Industrial Automation Components
Part#:M9F43204
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

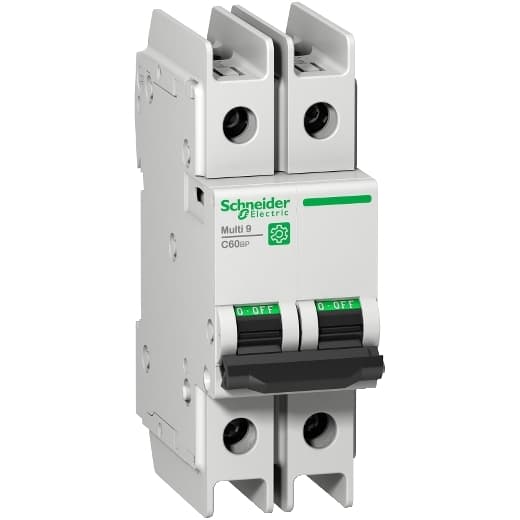

Schneider Electric M9F43204 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed to provide circuit protection. This MCB features a 2-pole configuration and is rated for a current of 4A. It has a rated insulation voltage (Ui) of 500V, with a DC rated voltage of 60Vdc and AC rated voltages of 240V phase-to-neutral and 415V phase-to-phase. The M9F43204 is equipped to handle rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. Both poles are protected, and it features a D tripping curve.
Product Details
- Contact Position Indicator Yes
- Range Multi 9
- Poles Description 2P
- Width 1.42 in (36 mm)
- Device Short Name C60BP
- Device Application Distribution
- [Uimp] Rated Impulse Withstand Voltage 6 kVEN/IEC 60947-2
- Trip Unit Technology Thermal-magnetic
- Line Rated Current 4 A 77 °F (25 °C) EN/IEC 60947-2
- Mounting Support DIN rail
- Number Of Protected Poles 2
- Suitability For Isolation Yes EN/IEC 60947-2
- Local Signalling ON/OFF indication
- Product Name Multi 9 C60
- Electrical Durability 10000 cycles
- Product Or Component Type Miniature circuit-breaker
- Curve Code D
- [Ui] Rated Insulation Voltage 500 V AC EN/IEC 60947-2
- Height 4.06 in (103 mm)
- Provision For Padlocking Padlockable
- Depth 2.83 in (72 mm)
- 9 Mm Pitches 4
- Mechanical Durability 20000 cycles
- Mounting Mode Clip-on
- Earth-Leakage Protection Without
- Wire Stripping Length 0.55 in (14 mm) top or bottom
- Color Gray
- Control Type Toggle
- Tightening Torque 22.13 lbf.in (2.5 N.m) top or bottom
- Product Certifications IEC CCC CSA UL
- Network Type AC DC
- Magnetic Tripping Limit 12 x In +/- 20 % AC 17 x In +/- 20 % DC
- [Ue] Rated Operational Voltage 240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
- Connections - Terminals Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²
- Standards EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
- [Ics] Rated Service Breaking Capacity 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 15 kA 75 % EN/IEC 60947-2 - 240 V AC 4.5 kA 75 % GB 14048.2 - 440 V AC 7.5 kA 75 % GB 14048.2 - 415 V AC 15 kA 75 % GB 14048.2 - 240 V AC
- Breaking Capacity 6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
