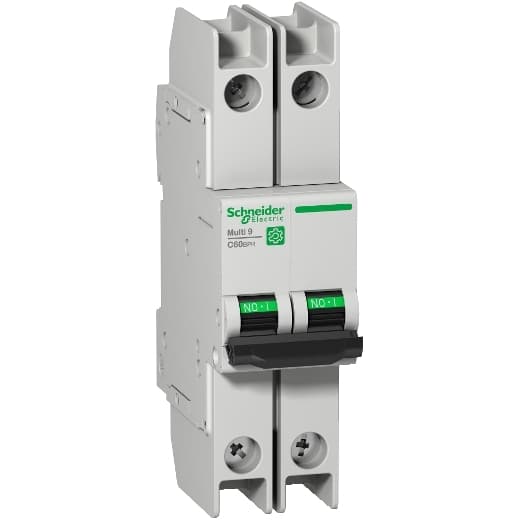

M9F52225 Schneider Electric Industrial Automation Components

M9F52225 on Powermatic Associates
Schneider Electric

Part#:M9F52225

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric M9F52225 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed to comply with UL489 standards. It features 2 poles, with a rated current of 25A and a rated insulation voltage (Ui) of 500V. The MCB has a rated impulse voltage (Uimp) of 6kV and offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. It operates with a rated voltage (AC) for phase-to-phase connections at 440V. Both poles are protected, and it utilizes a C tripping curve.

Product Details

  • Line Rated Current
    25 A 77 °F (25 °C) EN/IEC 60947-2
  • 9 Mm Pitches
    4
  • Poles Description
    2P
  • Curve Code
    C
  • Color
    Gray
  • Device Application
    Distribution
  • Range
    Multi 9
  • [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
  • Depth
    2.83 in (72 mm)
  • Product Name
    Multi 9 C60
  • Height
    5.00 in (127 mm)
  • Trip Unit Technology
    Thermal-magnetic
  • Contact Position Indicator
    Yes
  • Device Short Name
    C60BPR
  • Suitability For Isolation
    Yes EN/IEC 60947-2
  • Width
    1.42 in (36 mm)
  • Number Of Protected Poles
    2
  • Control Type
    Toggle
  • Electrical Durability
    10000 cycles
  • Mounting Mode
    Clip-on
  • Product Or Component Type
    Miniature circuit-breaker
  • Connections - Terminals
    Ring terminal top or bottom)
  • Provision For Padlocking
    Padlockable
  • Mounting Support
    DIN rail
  • Tightening Torque
    17.70 lbf.in (2 N.m) top or bottom
  • Mechanical Durability
    20000 cycles
  • [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
  • Local Signalling
    ON/OFF indication
  • Earth-Leakage Protection
    Without
  • Magnetic Tripping Limit
    8.5 x In +/- 20 % AC 12 x In +/- 20 % DC
  • Network Type
    AC DC
  • [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz 415 V AC 50/60 Hz 440 V AC 50/60 Hz
  • Standards
    EN/IEC 60947-2 GB 14048.2 UL 489 CSA C22.2 No 5
  • Product Certifications
    IEC CCC CSA UL
  • [Ics] Rated Service Breaking Capacity
    4.5 kA 75 % GB 14048.2 - 240 V AC 7.5 kA 75 % GB 14048.2 15 kA 75 % GB 14048.2 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC 15 kA 75 % EN/IEC 60947-2 - 415 V AC
  • Breaking Capacity
    6 kA Icu 440 V AC EN/IEC 60947-2 10 kA Icu 415 V AC EN/IEC 60947-2 20 kA Icu 240 V AC EN/IEC 60947-2 6 kA Icu 440 V AC GB 14048.2 10 kA Icu 415 V AC GB 14048.2 20 kA Icu 240 V AC GB 14048.2 14 kA AIR 240 V AC UL 489 10 k

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M9F52225 on Powermatic Associates is $261.00. Order now.

M9F52225 Related Documents

Product Datasheet-1631031662528.pdfCatalog-1631031662537.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
MGN61508 on Powermatic Associates

MGN61508

Schneider Electric

Schneider Electric MGN61508 is a Miniature Circuit Breaker (MCB) designed for DC applications. It falls under the C60H-DC sub-range and features a rated current of 10A with a rated voltage of 250V DC. This MCB is equipped with 1 pole that is protected and utilizes a C tripping curve.

32 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F43306 on Powermatic Associates

M9F43306

Schneider Electric

Schneider Electric M9F43306 is a Miniature Circuit Breaker (MCB) within the C60BP sub-range, designed for three-phase applications with a 3 Pole configuration. It has a rated current of 6A and offers a rated insulation voltage (Ui) of 500V. This MCB operates with a rated voltage of 60Vdc and has a rated impulse voltage (Uimp) of 6kV. It features a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 60Vdc. The rated voltage for AC applications is 240V phase-to-neutral and 415V phase-to-phase. All three poles are protected, and it utilizes a D tripping curve.

2 in stock
