Part#:MGL26600

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

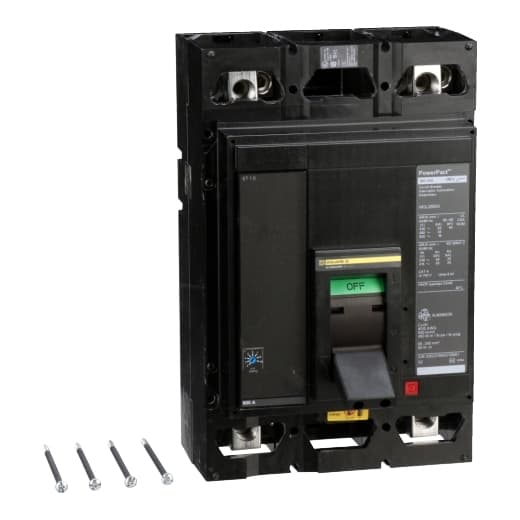

Square D by Schneider Electric MGL26600 is a Moulded Case Circuit Breaker (MCCB) designed for individual unit mount on plate. It features a PowerPact M-Frame 800 ET1 (LI) 2P 600A 600Vac design with a net height of 210 mm, width of 153 mm, and depth of 204 mm. This MCCB has a rated current of 600A and operates with a connection type of lugs on both load and line sides. It falls under the PowerPacT MGL sub-range and supports a rated voltage of 600Vac 600Y/347Vac with 2 poles (2P). The rated operating voltage (Ue) is 600 V, and it offers protection functions including L (Long-time protection) and I (Instantaneous protection) with a trip current rating of 600 AT. The frame current rating is 800 AF, and it has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac, 35kA at 480Y/277Vac, 18kA at 600Vac, and 18kA at 600Y/347Vac, all according to UL489 standards. The trip unit type is an electronic ET1.0 (LI) with no display, and it is categorized under utilisation category A. Protection settings include L - Protection against overload fixed at 600A and I - Instantaneous protection against short-circuit adjustable from 1.5 to 12 times In (1200A to 6000A).

Product Details

  • Height
    12.86 in (326.6 mm)
  • Magnetic Tripping Current
    1200…6000 A
  • Continuous Current Rating
    80 %
  • Product Or Component Type
    Circuit breaker
  • Depth
    8.27 in (210 mm)
  • Terminal Identifier
    AL800M23K
  • Line Rated Current
    600 A
  • Width
    0.32 in (8.06 mm)
  • Number Of Poles
    2P
  • Breaking Capacity Code
    G
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MGL26600 on Powermatic Associates is $5,960.00. Order now.
