Part#:MGL36400

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

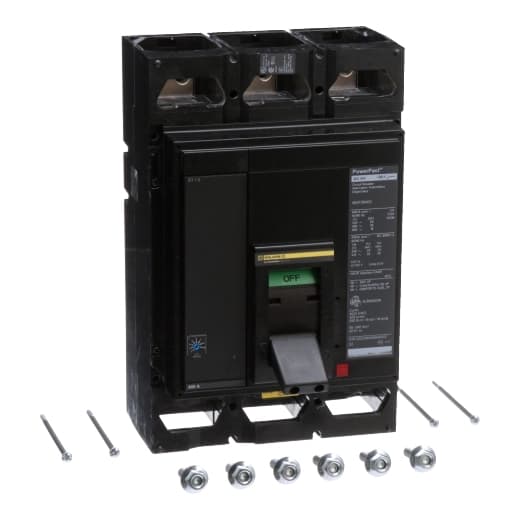

Square D by Schneider Electric MGL36400 is a Moulded Case Circuit Breaker (MCCB) designed for individual unit mount on plate. It features a PowerPact M-Frame 800 ET1 (LI) 3P 400A 600Vac design with a net height of 210 mm, width of 153 mm, and depth of 204 mm. This MCCB has a rated current of 400A and operates with lugs on both load and line sides for connection. It falls under the PowerPacT MGL sub-range and supports a rated voltage of 600Vac 600Y/347Vac. The device is equipped with three poles (3P) and has a rated operating voltage (Ue) of 600 V. Its protection functions include Long-time protection (L) and Instantaneous protection (I), with a trip current rating of 400 AT and a frame current rating of 800 AF. The short circuit breaking rating is specified as 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, and 18kA at 600Vac and 600Y/347Vac, all in accordance with UL489 standards. The trip unit is an electronic ET1.0 (LI) with no display, and the protection settings are fixed at 400A for overload (L) and adjustable from 1.5 to 12 times In (800A to 4000A) for instantaneous protection against short-circuit (I). It is categorized under utilisation category A.

Product Details

  • Terminal Identifier
    AL800M23K
  • Magnetic Tripping Current
    800…4000 A
  • Continuous Current Rating
    80 %
  • Line Rated Current
    400 A
  • Number Of Poles
    3P
  • Height
    12.86 in (326.6 mm)
  • Depth
    8.27 in (210 mm)
  • Tightening Torque
    442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (AWG 3/0...500 kcmil)
  • Product Or Component Type
    Circuit breaker
  • Width
    0.32 in (8.06 mm)
  • Breaking Capacity Code
    G
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
